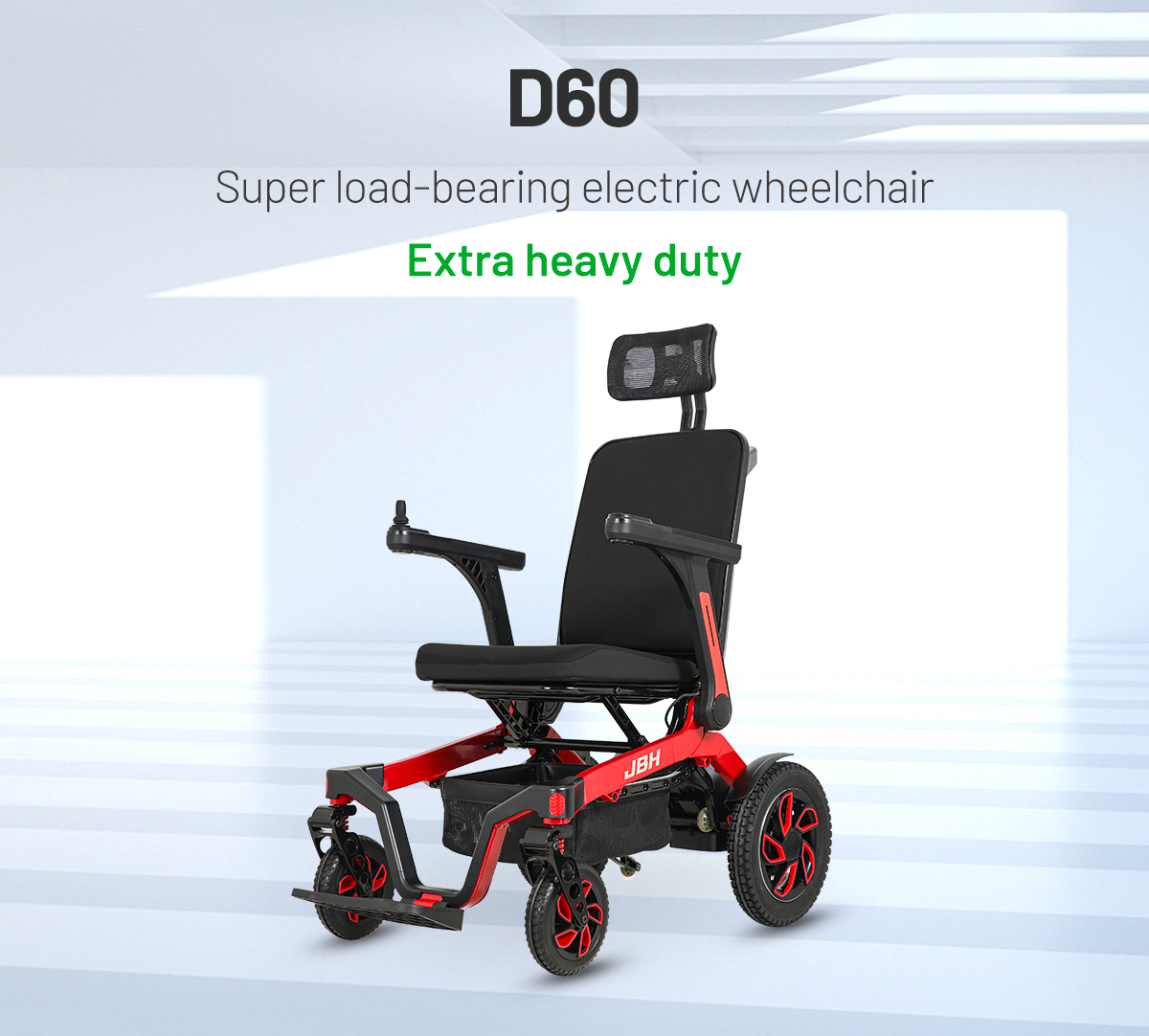

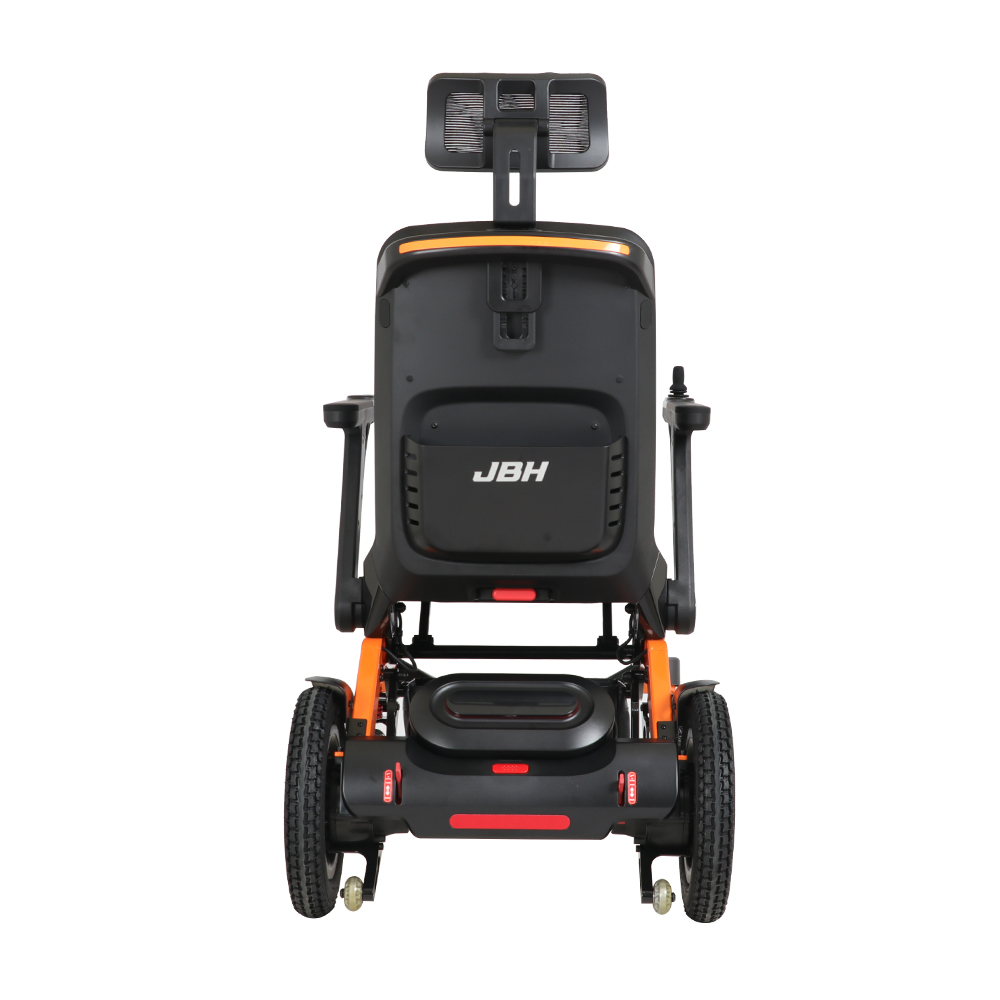

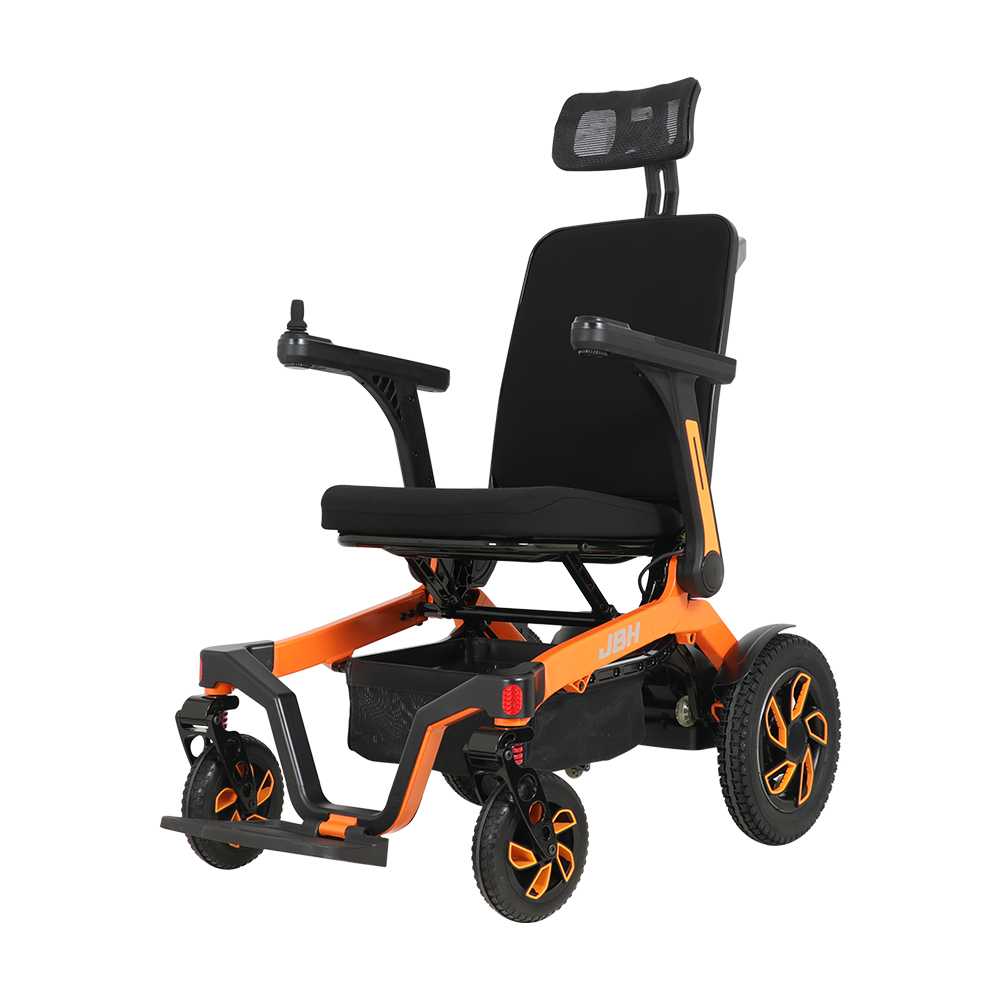

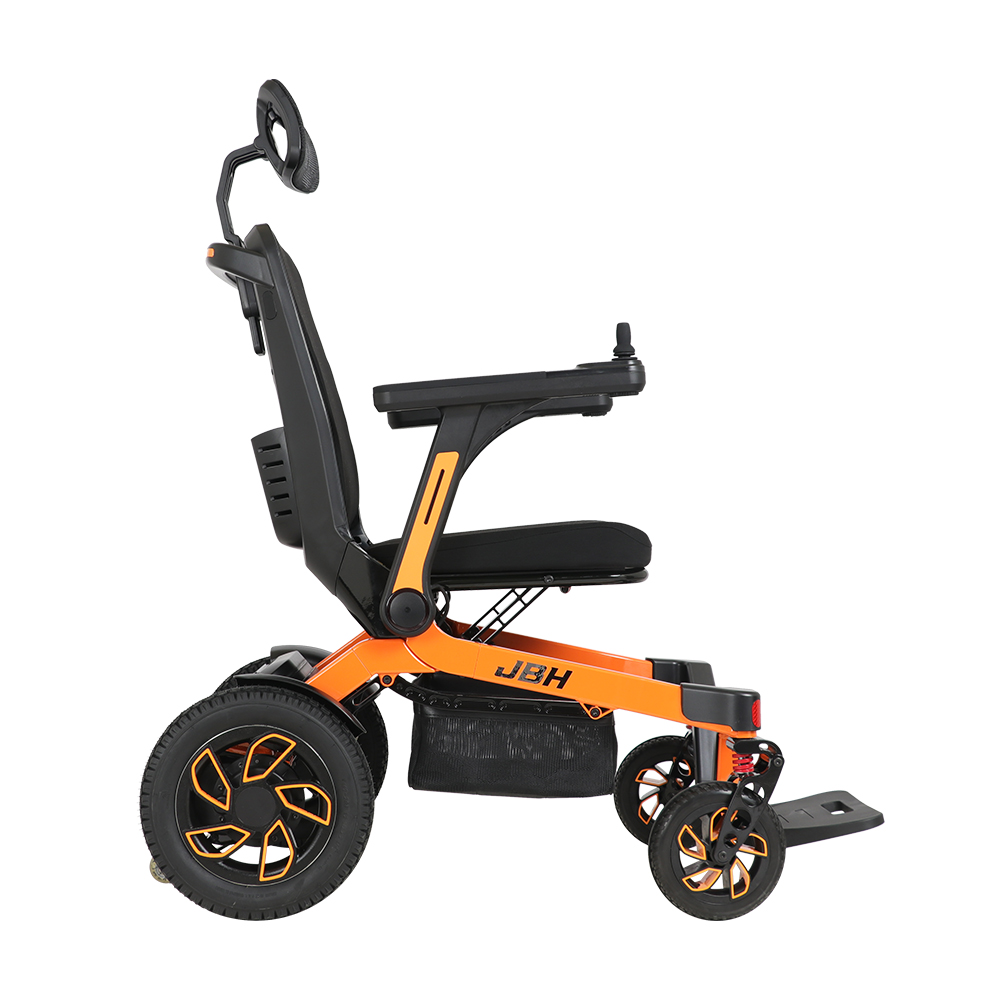

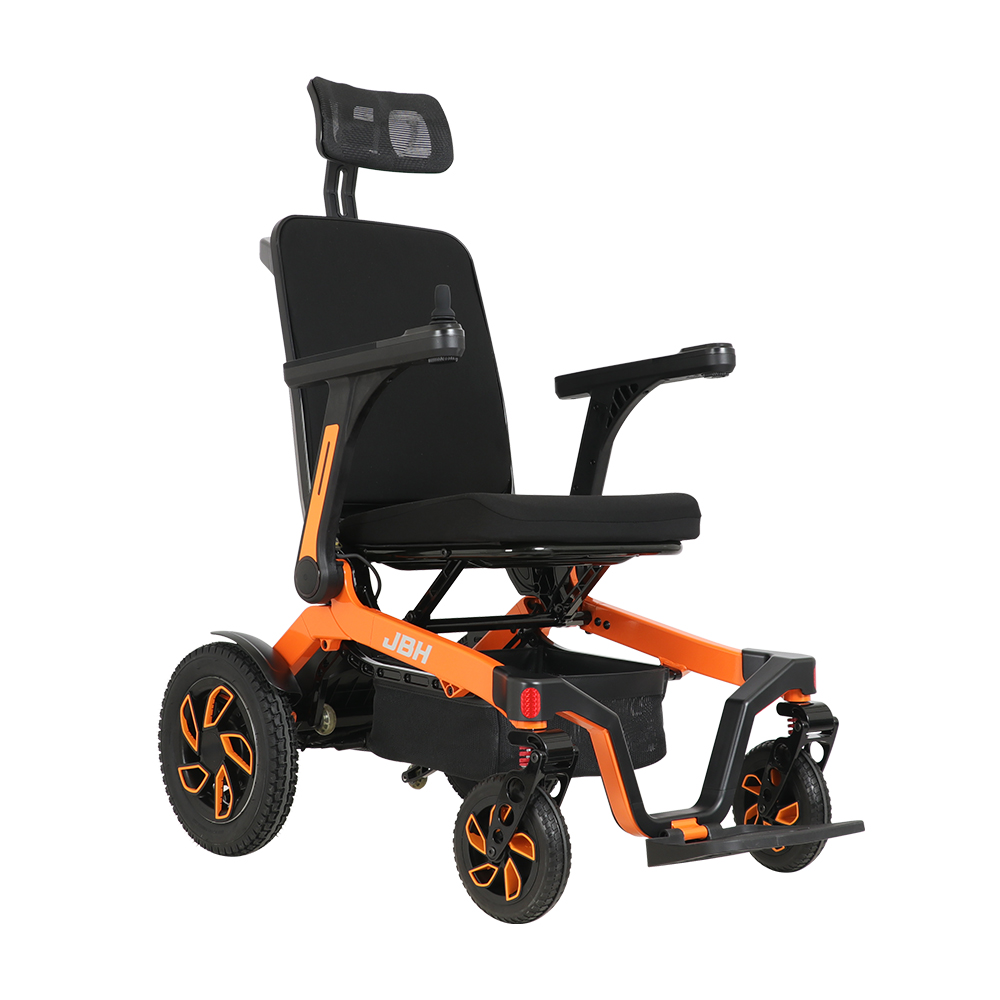

JBH Super Load-bearing Electric Wheelchair D60

Unfolded Size 42.1"×24.2"×47.2"

Fold Size 28.3"×24.2"×19.7"

Material Aluminium Alloy

Driving Speed 0~6 km/h

Driving Range 25 km (15.5 miles)

Loading Capacity 150 kgs (330.7 lbs)

Net Weight 30 kgs (66.1 lb) (Without Battery)

Seat Width 420 mm (16.5")

Seat Depth 520 mm (20.5")

Motor 250W × 2 pcs brushless motors

Battery 10 Ah / 20Ah lithium battery

Braking System Intelligent Electromagnetic Brake
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • D60

  • JBH

D60-1200_01

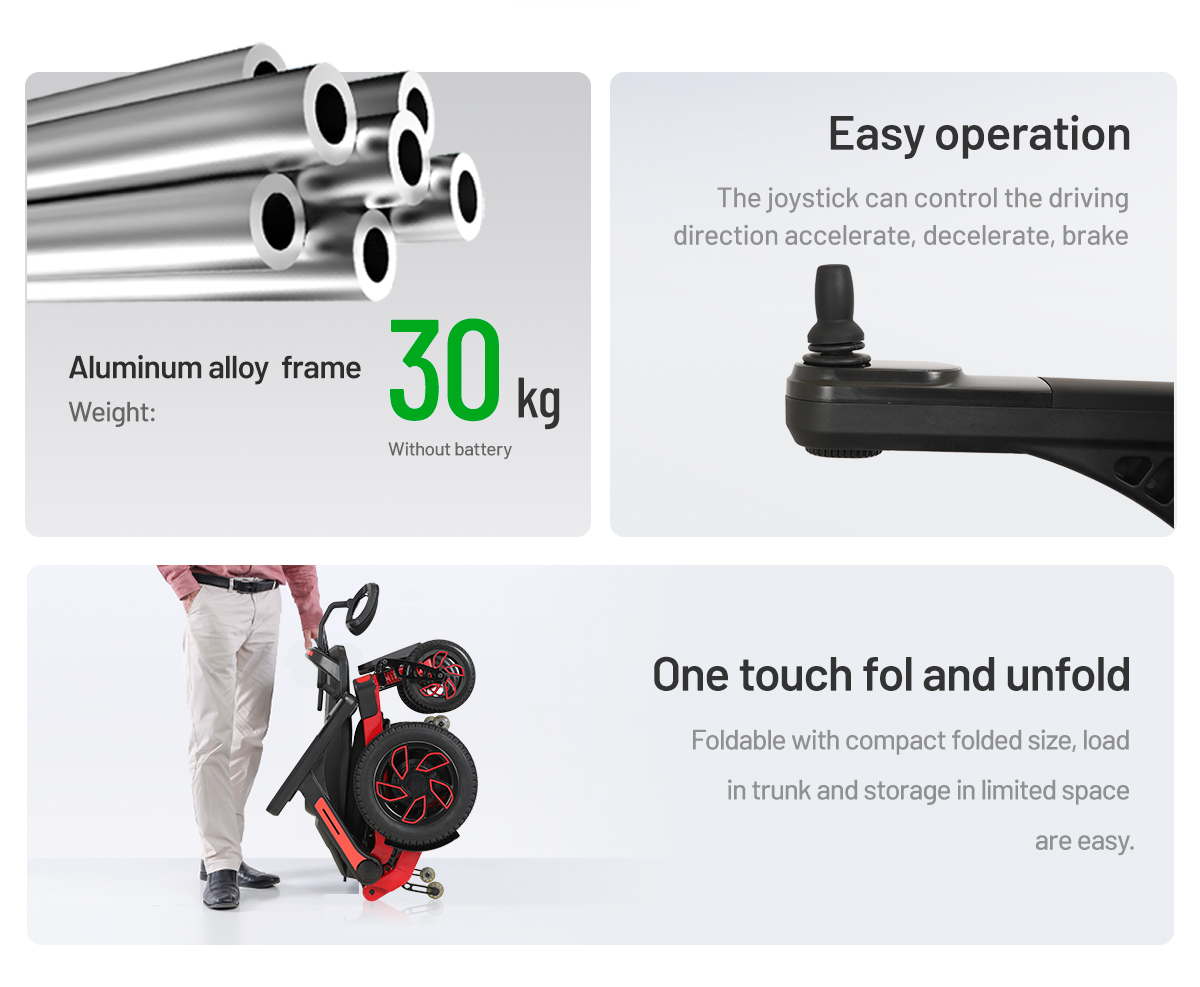

D60-1200_02

D60-1200_03

D60-1200_04

D60-1200_05

D60-1200_06

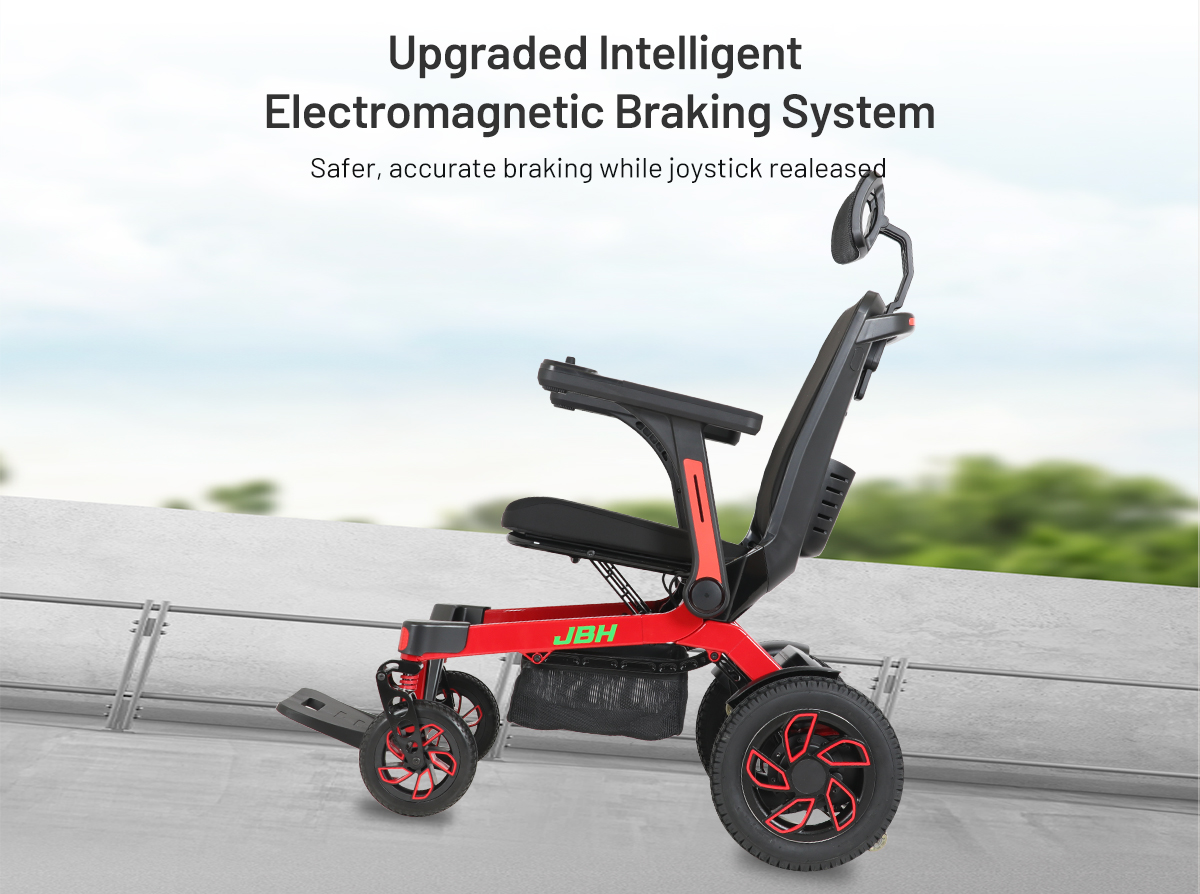

D60-1200_07

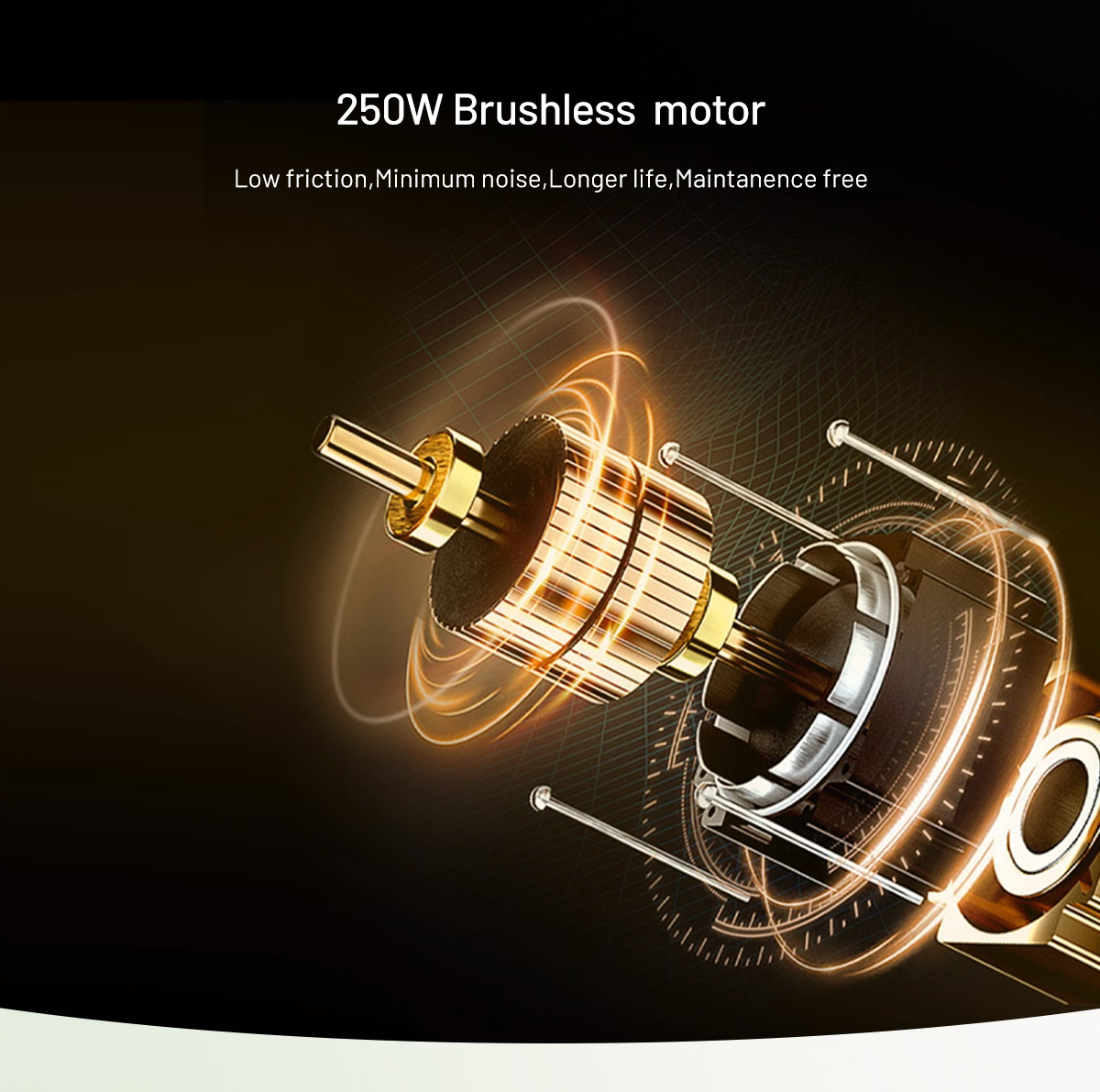

D60-1200_08

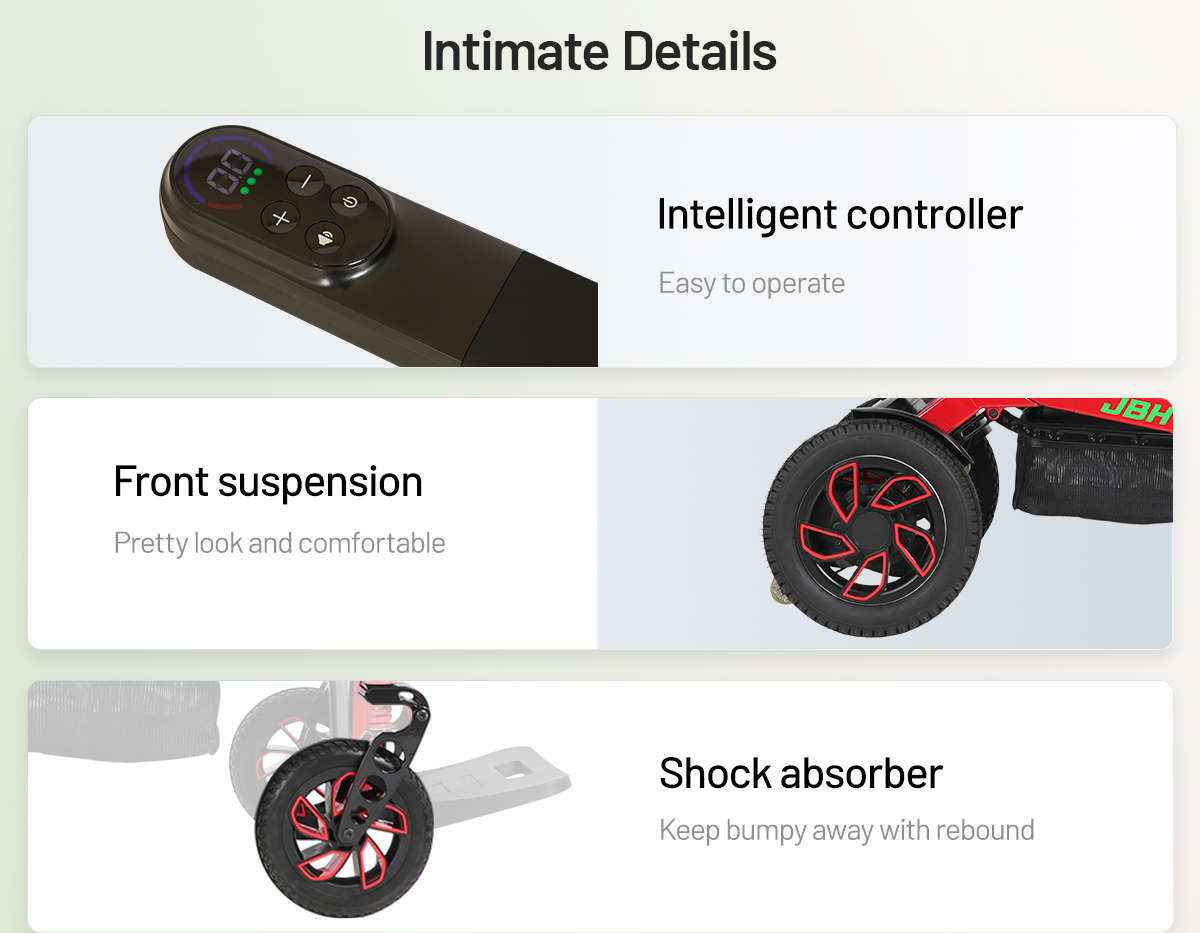

D60-1200_09

D60-1200_10

D60-1200_11

D60-1200_14

D60-1200_15

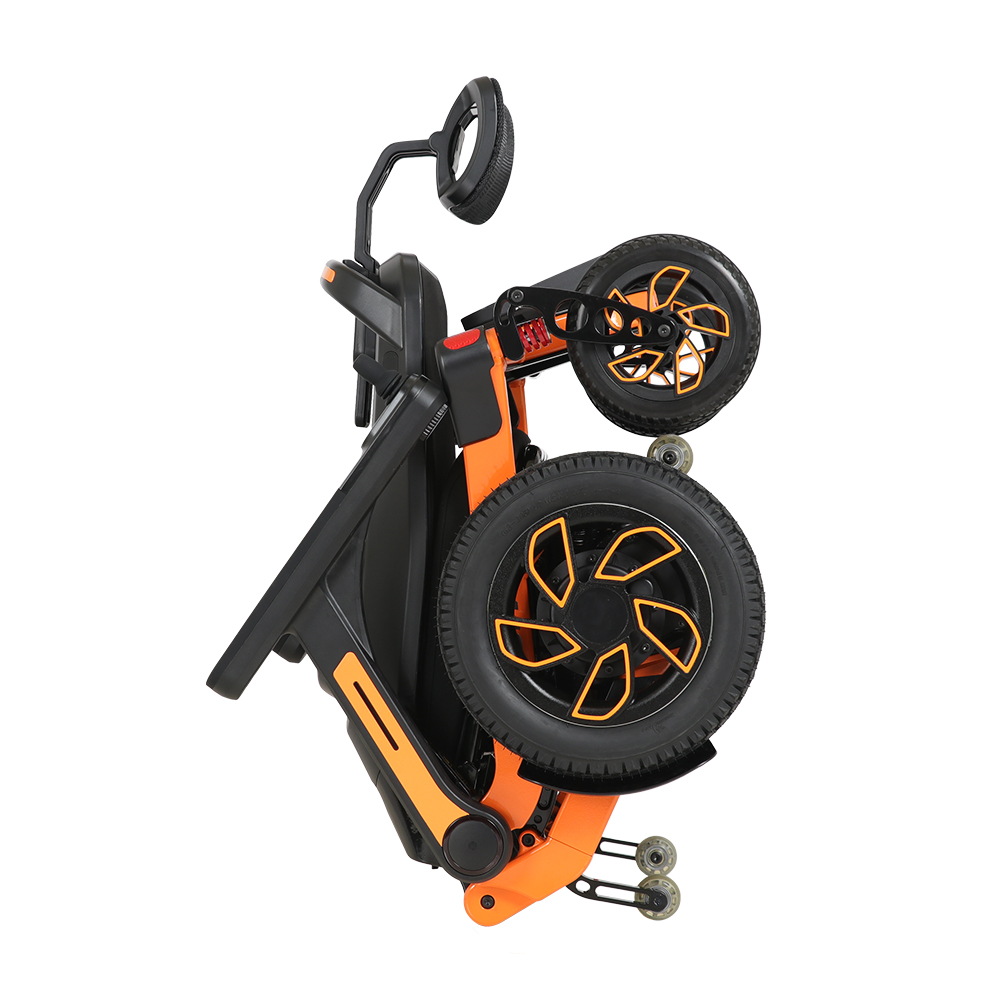

Fold Size
720 × 615 × 500 mm (28.3"×24.2"×19.7")
Unflod Size
1070 × 615 × 1200 mm (42.1"×24.2"×47.2")
Material
Aluminium Alloy
Max Weight Capacity
150 kgs (330.7 lbs)
Gross Weight (With export packing)
39 kgs (86 lb)
Net Weight without battery
30 kgs (66.1 lb)
Speed
0-6 km/h
Seat Width
420 mm (16.5")
Seat Depth
520 mm (20.5")
Motor
250W × 2 pcs brushless motors
Batteries
10 Ah / 20Ah lithium battery
Charging Time
6~8 hours

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:


   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.



   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.




Get In Touch With Us

GET TOUCH WITH US

OUR PRODUCTS

MORE LINKS

CONTACT US

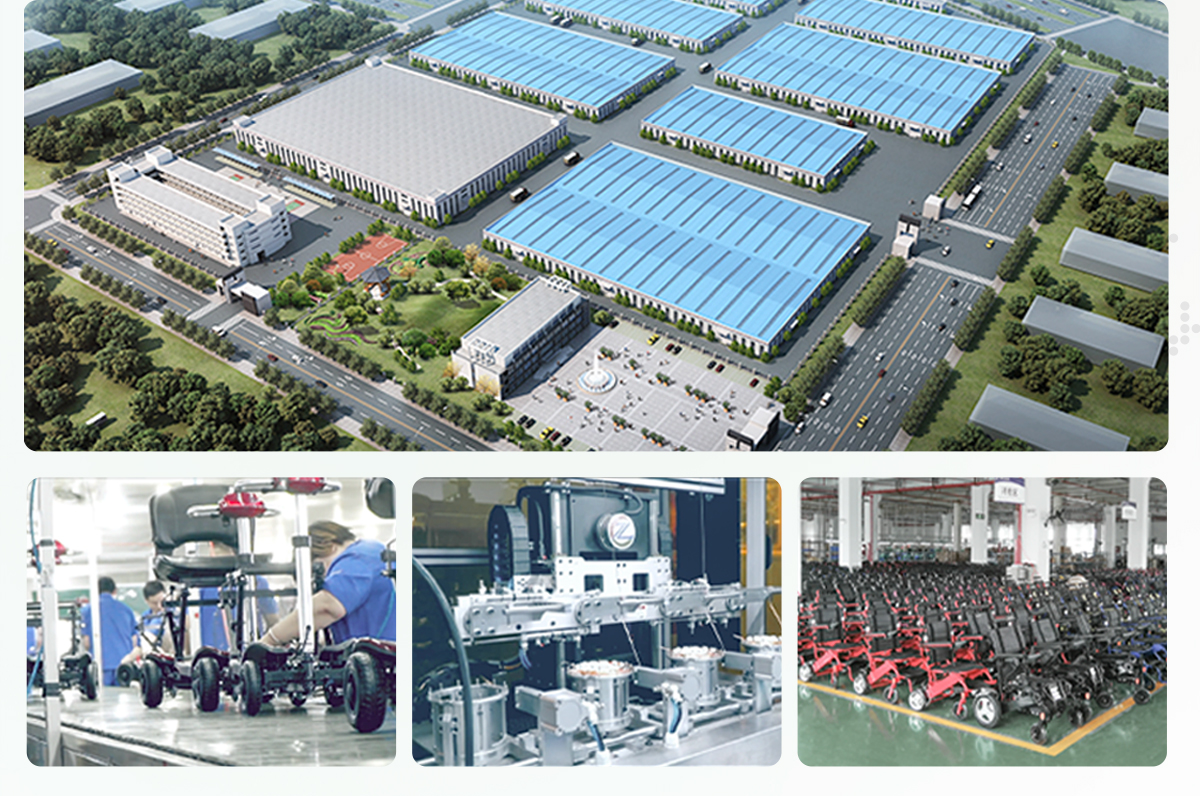

 Mingguang Factory:
