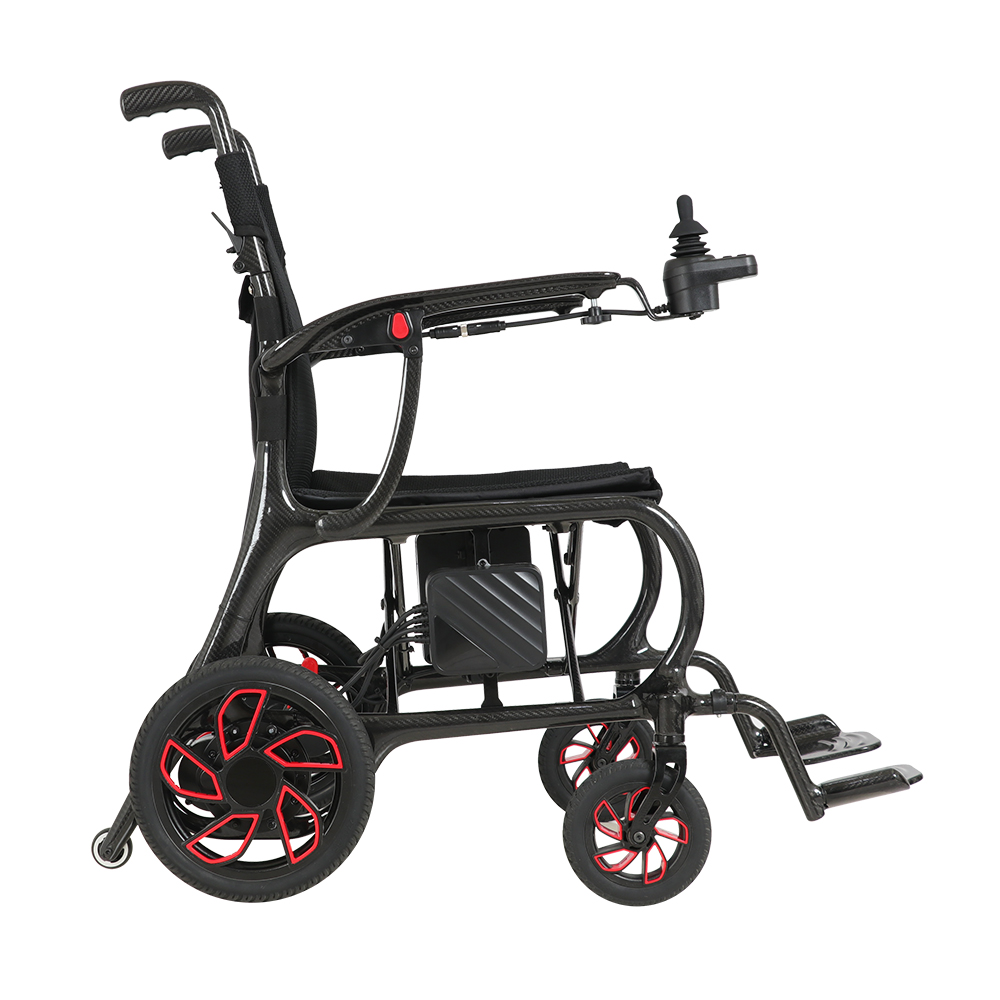

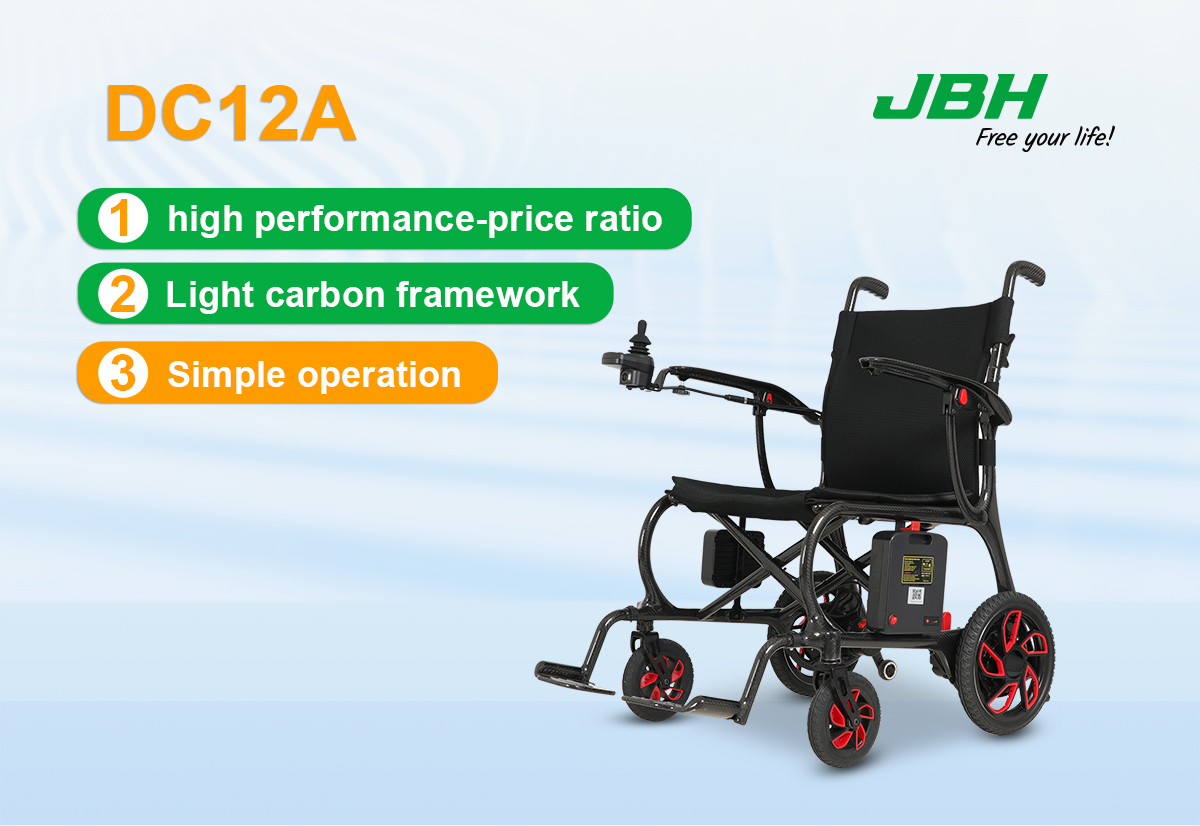

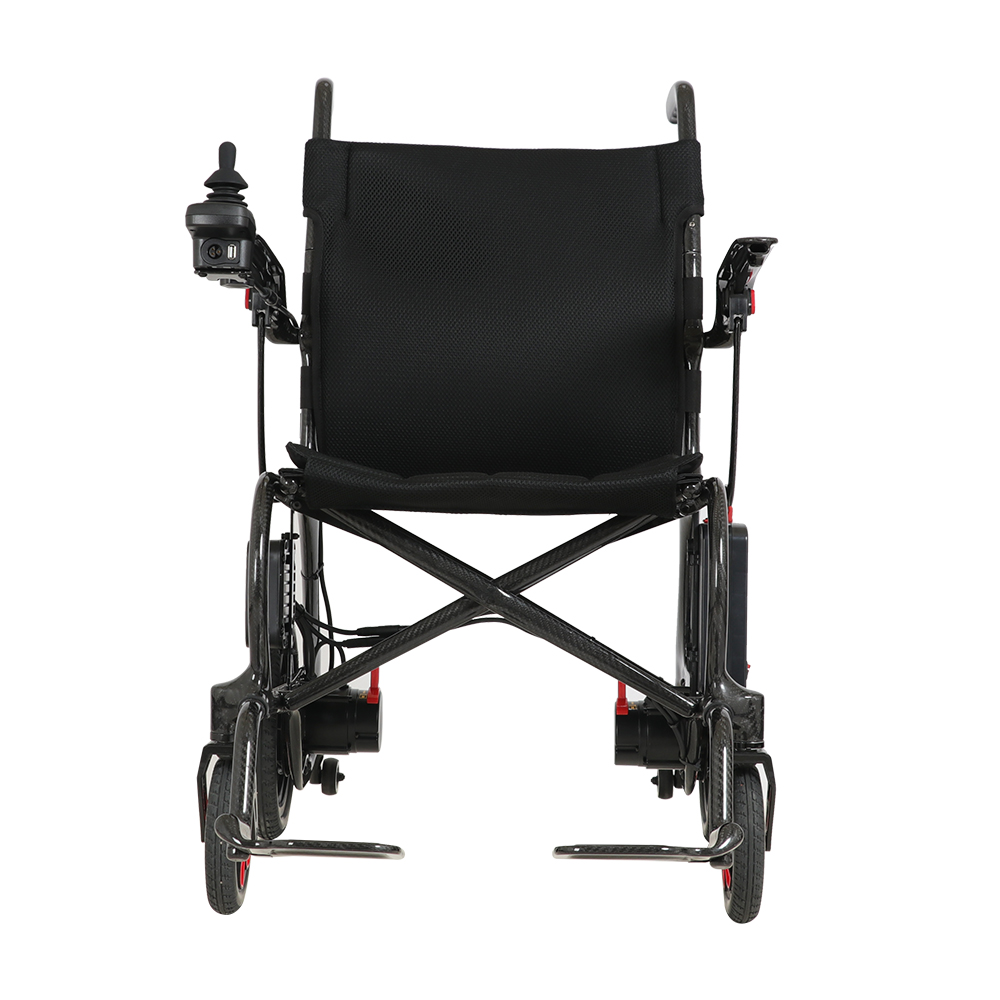

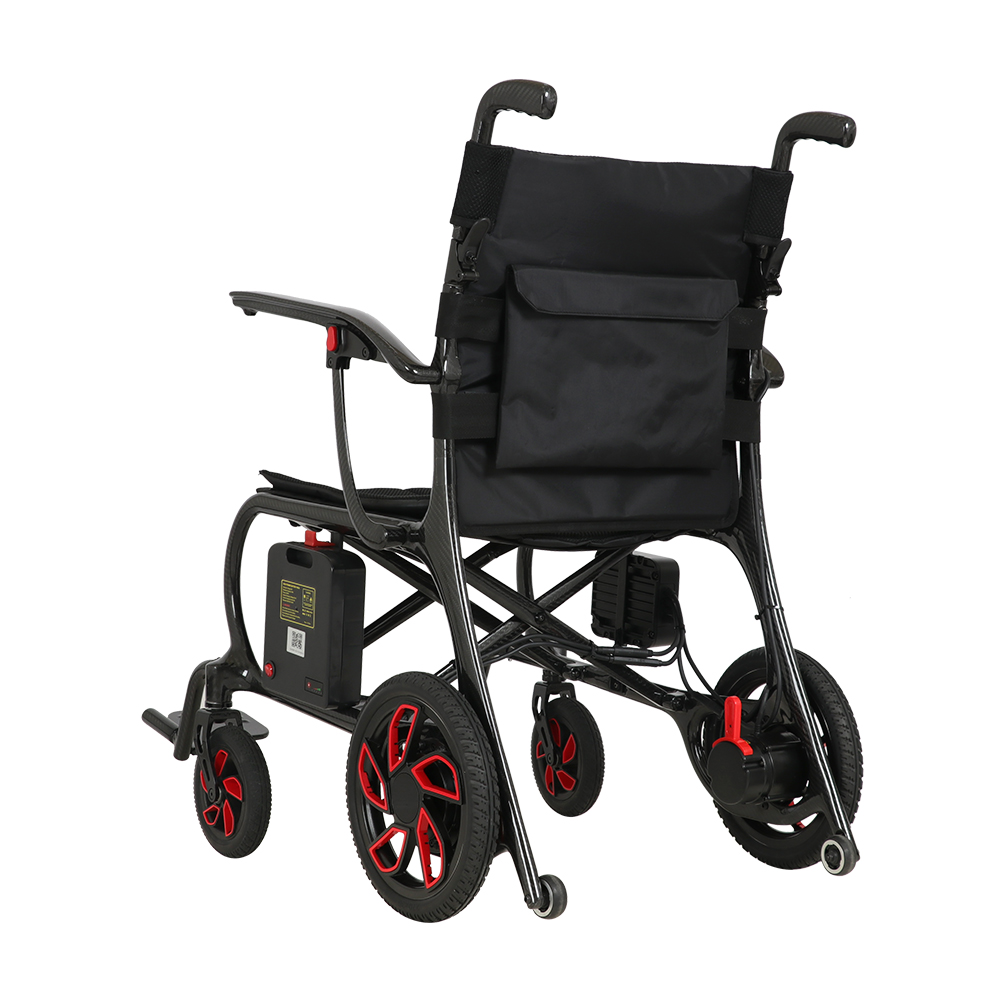

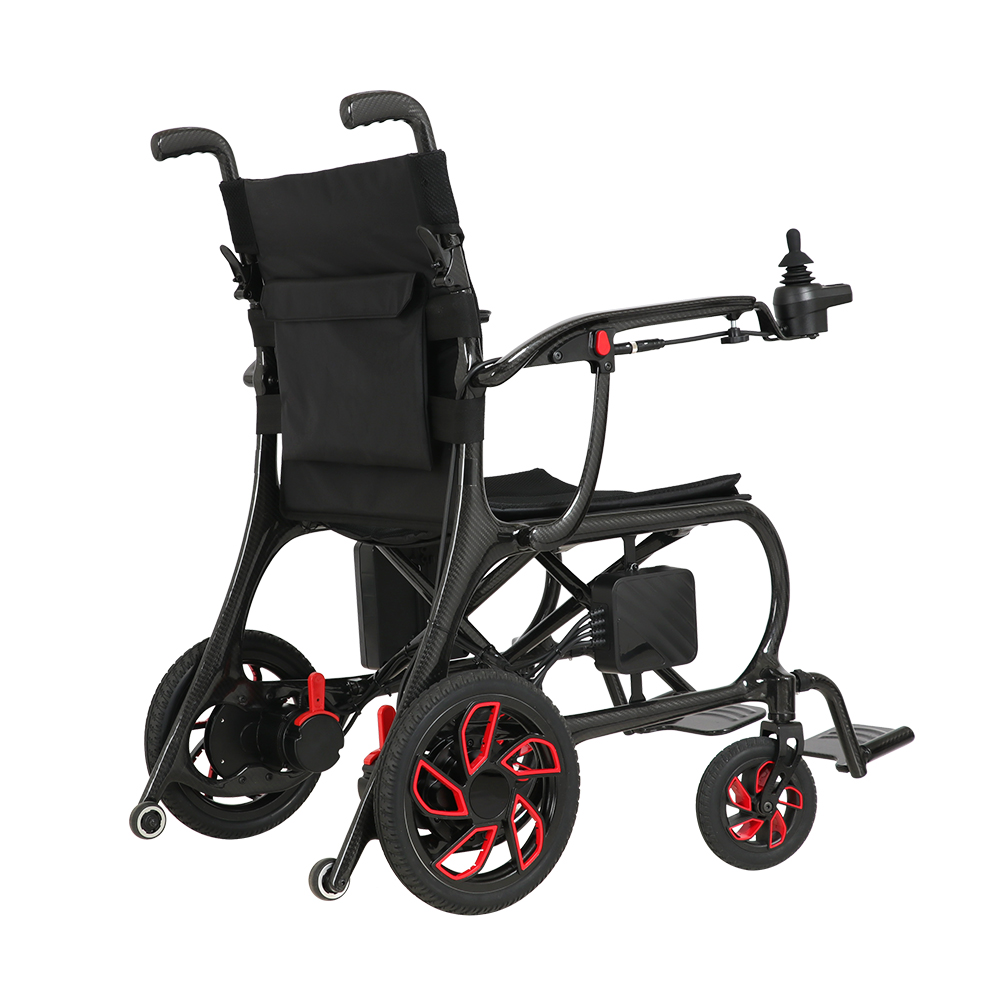

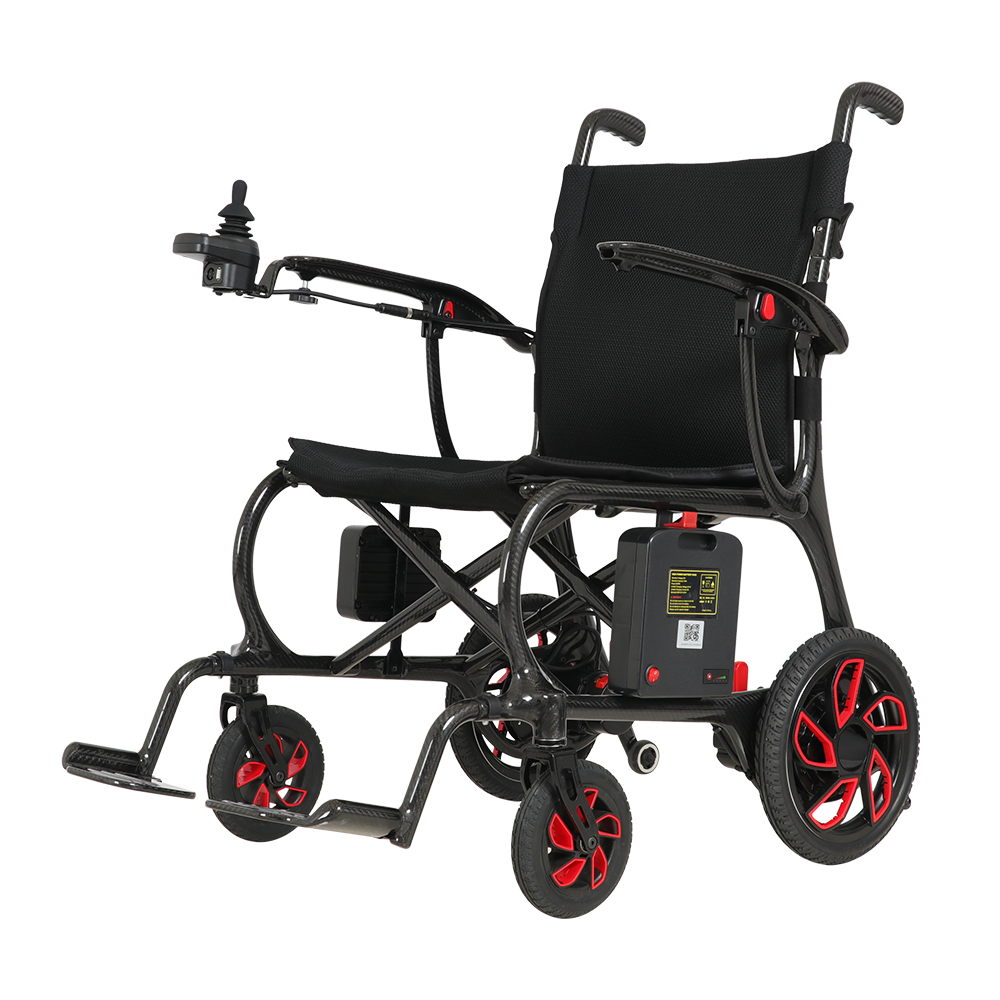

JBH Light Carbon Framework Electric Wheelchair DC12A

5 0 Reviews
Unfolded Size 37.4"×22.8"×35.6"

Fold Size 37.4"×9.6"×30.7"

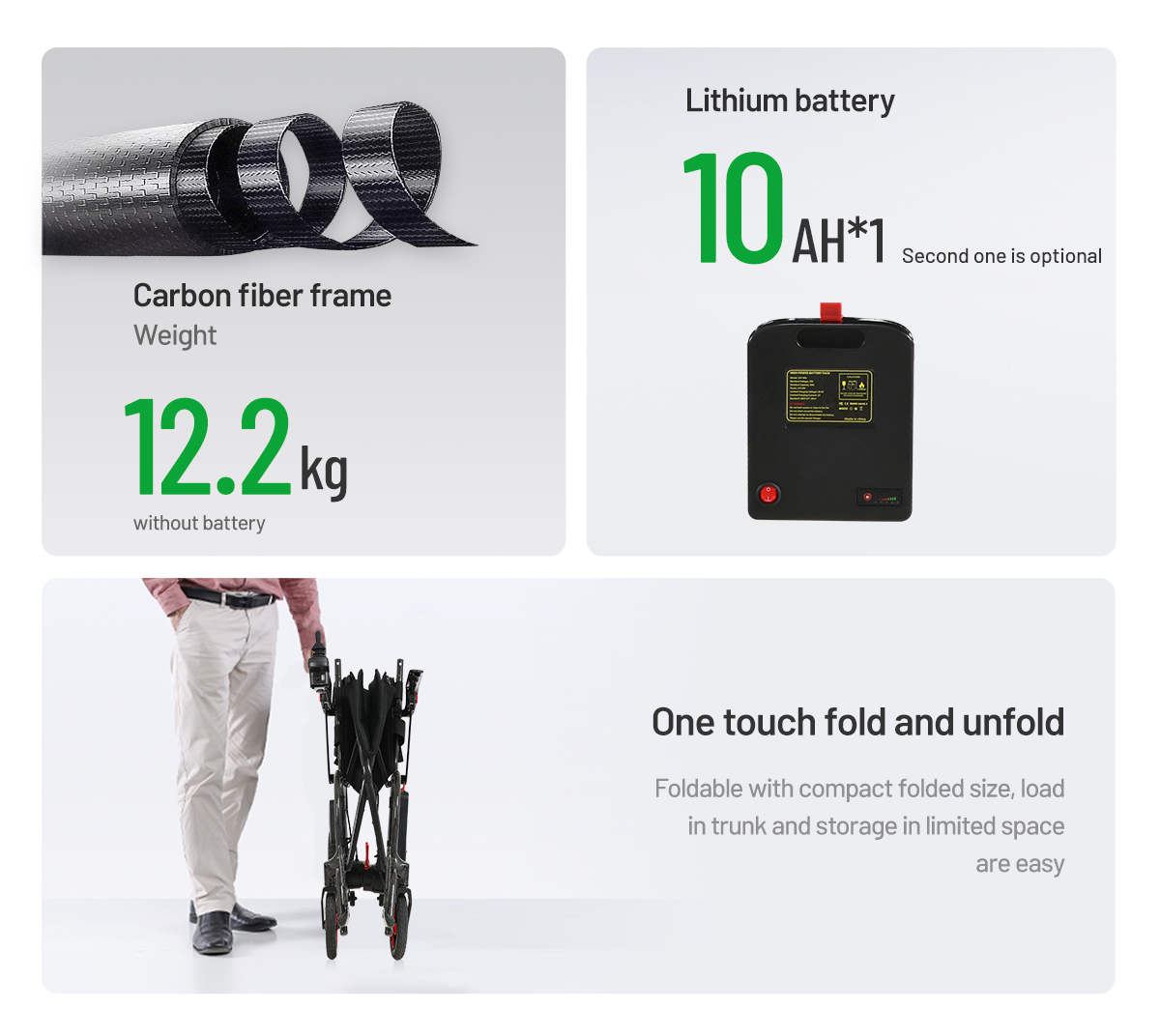

Material Carbon Fiber

Driving Speed 0~6 km/h

Driving Range ≥35 km（21.8 miles）

Loading Capacity 120 kgs (265 lbs)

Net Weight 12.6 kgs (27.8 lbs)(Without Battery)

Seat Width 430 mm (16.9")

Seat Depth 420 mm (16.5")

Motor 180W × 2 pcs Brushless Motors(Optional configuration)

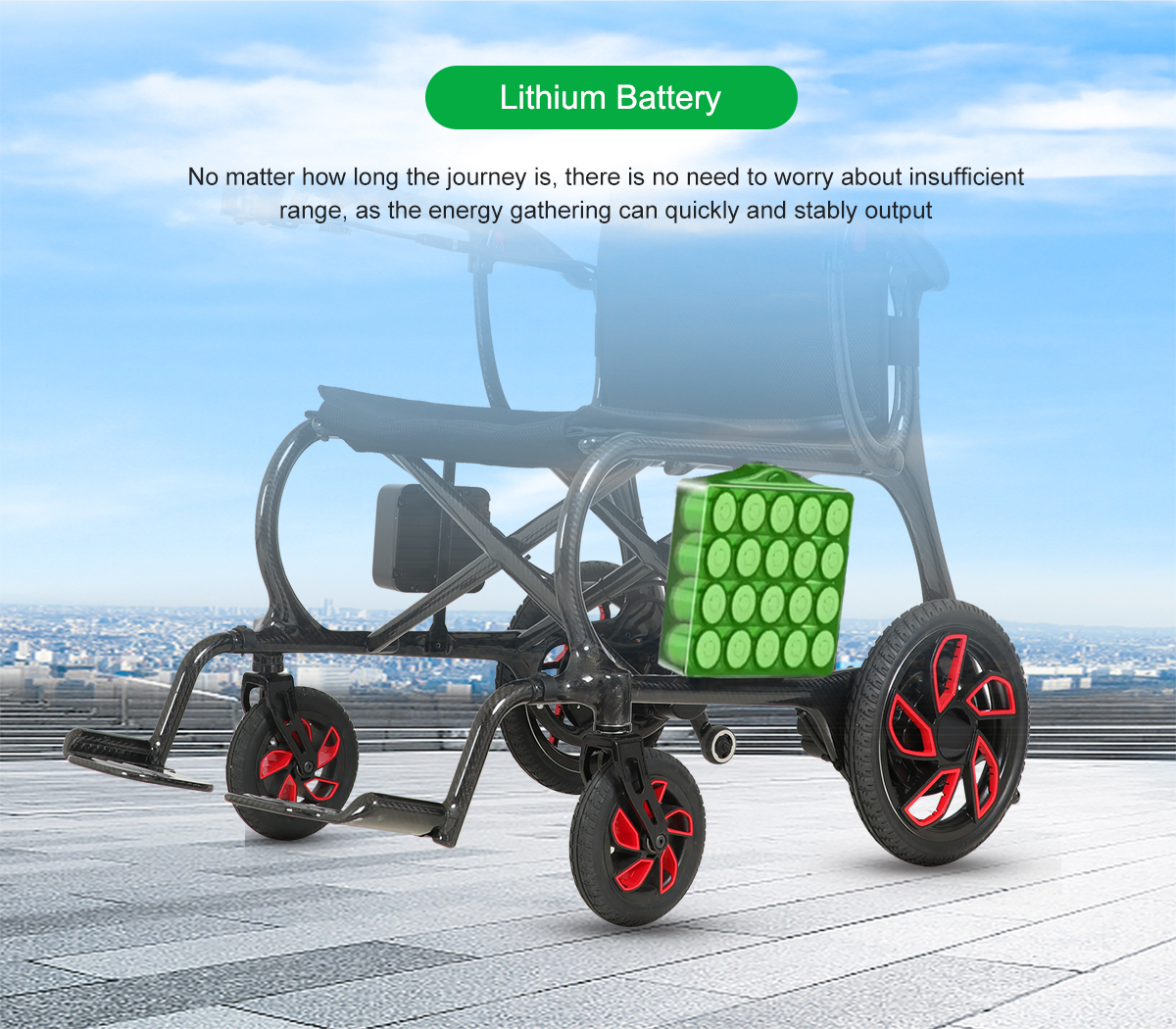

Battery 24V 10AH × 2 pc Lithium Battery(Optional configuration)

Braking System Intelligent Electromagnetic Brake
Availability:
Inquire

linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

  • DC12A

  • JBH



Unflod Size
950 × 580 × 905 mm (37.4"×22.8"×35.6")

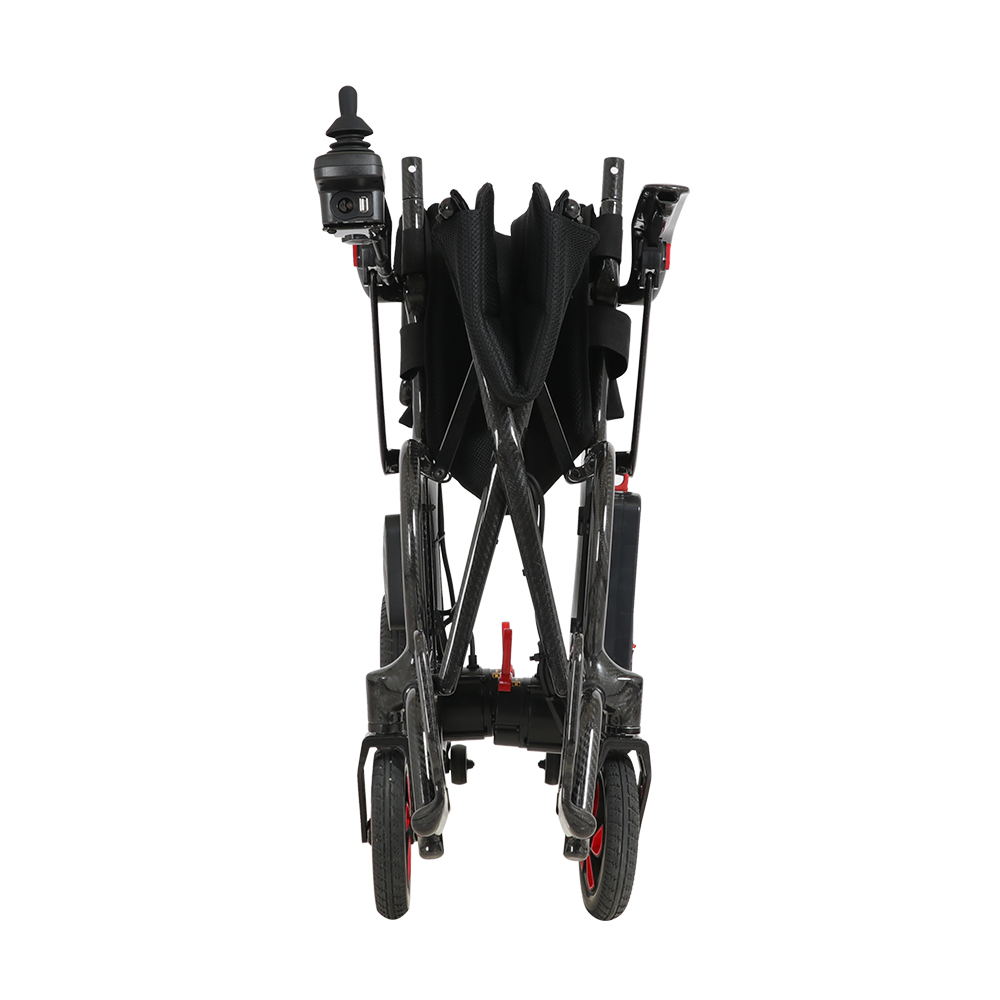

Fold Size
950 × 245 × 780 mm (37.4"×9.6"×30.7")
Driving Speed
0-6 km/h
Driving Range
≥35 km（21.8 miles）
Loading Capacity
120 kgs (265 lbs)
Charging Time
7~9 hours
Net Weight
12.6 kgs (27.8 lbs)(Without Battery)
Seat Width
430 mm (16.9")
Seat Depth
420 mm (16.5")
Motor
180W × 2 pcs Brushless Motors(Optional configuration)
Battery
24V 10AH × 2 pc Lithium Battery(Optional configuration)

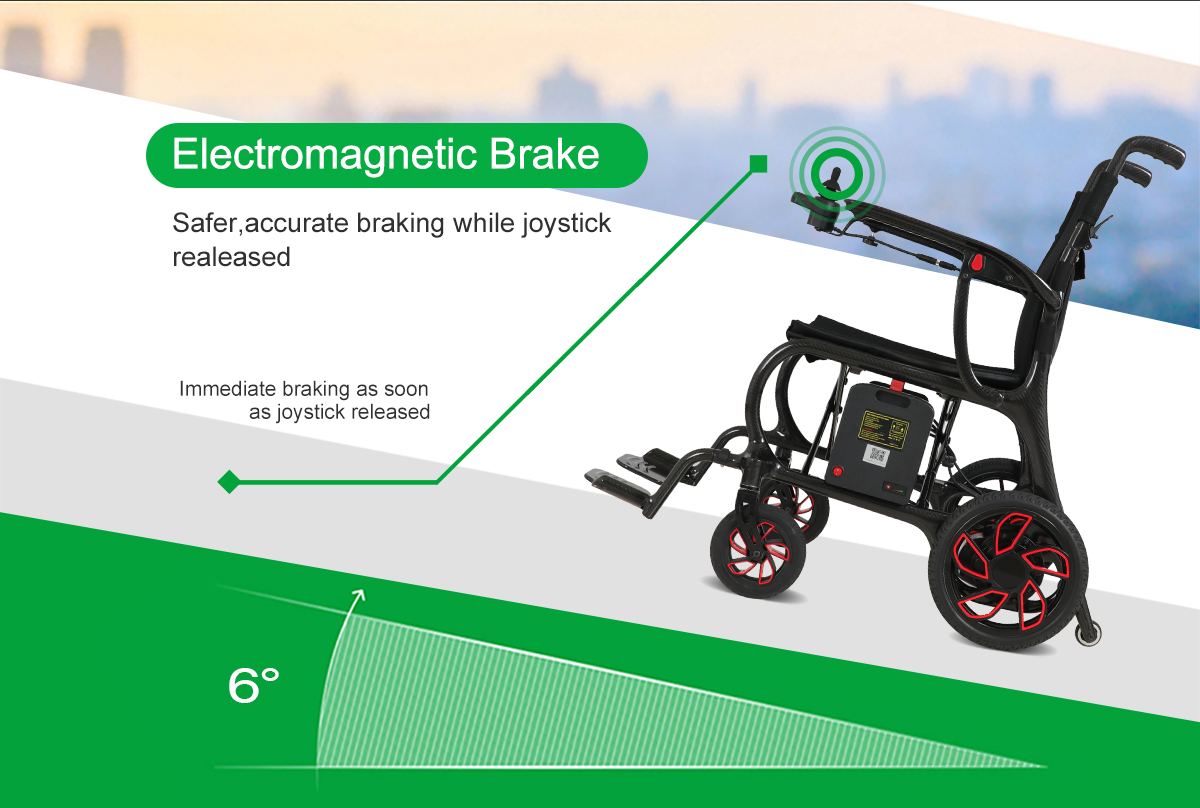

Braking System
Intelligent Electromagnetic Brake

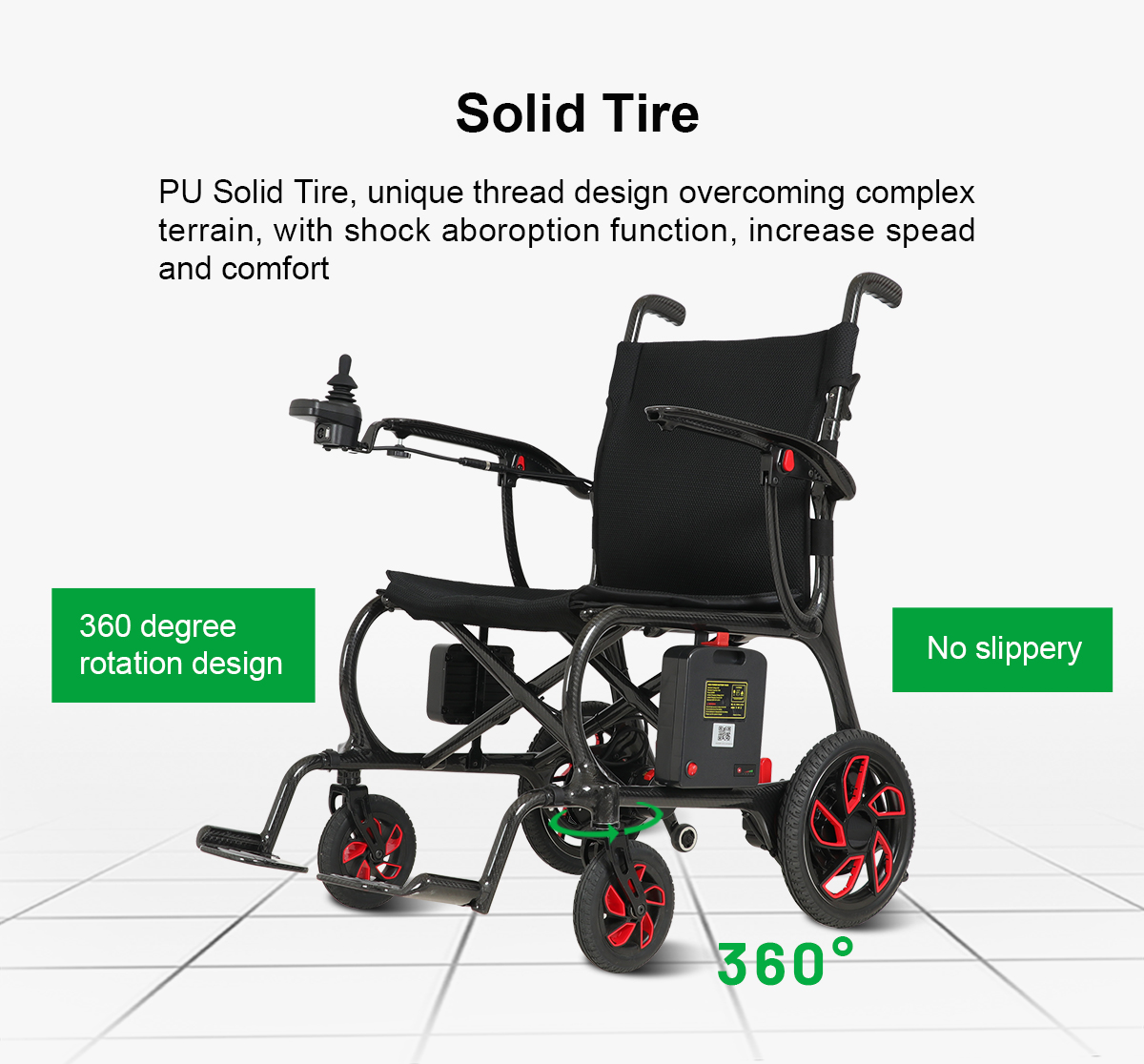

Front Wheel
165 x 38 mm (6.5"x1.5") Nylon Wheel Hub +
PU Tire + ABS Decorative Cover (Optional Colors)
Rear Wheel
265 x 40 mm (10.4"x1.6") Magnesium Alloy Die-Cast
Wheel Hub + PU Tire + ABS Decorative Cover (Optional Colors)
Safe Gradient
6°

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:


   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.



   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.



RELATED PRODUCTS

DC12
JBH Light Carbon Framework Wheelchair DC12

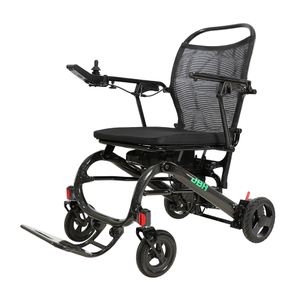

JBH DC10L Ultra-Lightweight Carbon Fiber Electric Wheelchair
JBH DC10L Ultra-Lightweight Carbon Fiber Electric Wheelchair
JBH Lightweight Foldable Electric Wheelchair with Compact Size D23
JBH Lightweight Foldable Electric Wheelchair with Compact Size D23
JBH Silver Folding Lightweight Wheelchair D09
JBH Silver Folding Lightweight Wheelchair D09

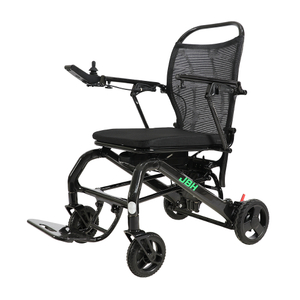

JBH Adjustable Lightweight Carbon Fiber Wheelchair DC07L
JBH Adjustable Lightweight Carbon Fiber Wheelchair DC07L
JBH DC08M
JBH DC08M Lightest Carbon Fiber Folding Wheelchair for Travel

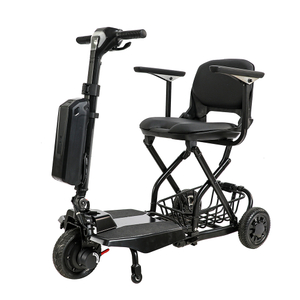

JBH Lightweight Electric Mobility Scooter FNS03
JBH Lightweight Electric Mobility Scooter FNS03

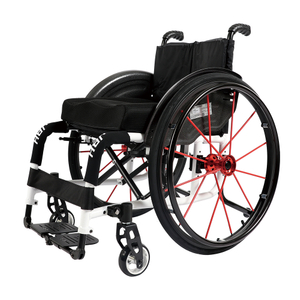

JBH Pink Lightweight Sport Wheelchair S002
