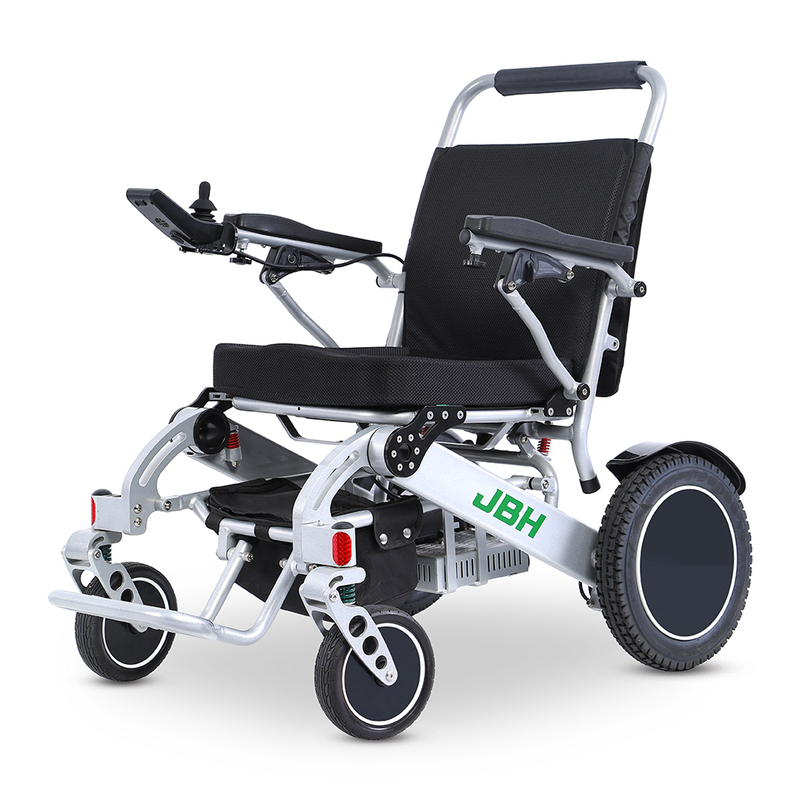

JBH Lightweight Folding Electric Powered Wheelchair D12

Unfolded Size 39.4"*25.4"*(41.3"~46.1")

Fold Size   25.4"*14.2"*30.3"

Material Aluminum alloy

Driving Speed 0~6 km/h

Driving Range ≥20 km(12.4 miles)

Loading Capacity 120 kg (264.6 lb)

Net Weight  28.9 kg(63.7 lb)

Seat Width 440 mm (17.3")

Seat Depth 450 mm (17.7")

Motor   250W × 2 pcs brushless motor

Battery 24V 6AH × 2 pcs lithium battery

Braking System Electromagnetic Brake
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • D12

  • JBH


D12 Electric Wheelchair

Description:

   JBH D12, an intelligent wheelchair with electromagnetic brake system which can brake immediately once you released the joystick. Super easy to operate no matter who use it.


Features:

   1. Offering an impressive 120kg carrying capacity

   2. We have updated version D12C, back angel adjustable

   3. Small turning circle and precise controls.

   4. Easy to folding and unfolding in 3 seconds.

   5. Adjustable seat height,easy to adjust and make you have a better experience when driving.

   6. Anti-overturn wheel, protect you from second injury

   7. Small size and compact folding easy to keep in car back



D12 Electric Wheelchair parameters


D12 Electric Wheelchair Details


Our Advantage:

   1. Have independent designer and factory. JBH Medical is a professional supplier of wheelchair and has our own factory and designer.

   2. High Quality Product. All our products have got the certifications and can meet different countries's requirements.

   3. Customization Service. Except the default colors, our products can be customized to any other colors according to your requirements.

   4. Perfect After-sales Service. We have agents in different countries, and provide technology support.

D26详情页-3_06



Unfolded Size (L * W * H)
1030*660*940 mm(40.6"*26"*37")
Fold Size (L * W * H)
660*350*740 mm(26"*13.8"*29.1")
Driving Range
≥20 km(12.4 miles)
Driving Speed
0~6 km/h
Loading Capacity
120 kg (264.6 lb)
Net Weight
28.2 kg (62.2lb)
Gross Weight
30.8 Kg (67.9lb)
Armrest Spacing
510 mm (20.1“)
Seat Width
440 mm (17.3")
Seat Depth
450 mm (17.7")
Motor
250W × 2 pcs brushless motor
Battery
24V 6AH lithium battery (1~4pcs)
Braking System
Electromagnetic Brake
Front Wheel
200mm*52mm(7.9"*2") 2pcs PU solid wheels
Rear Wheel
325 mm*55 mm(12.8"*2.2")* 2pcs PU solid wheels
Safe Gradient
Turning Radius
800 mm (31.5“)
Charging Time
6 hours(2 batteries )
Default Color
Silver

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:


   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.



   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
