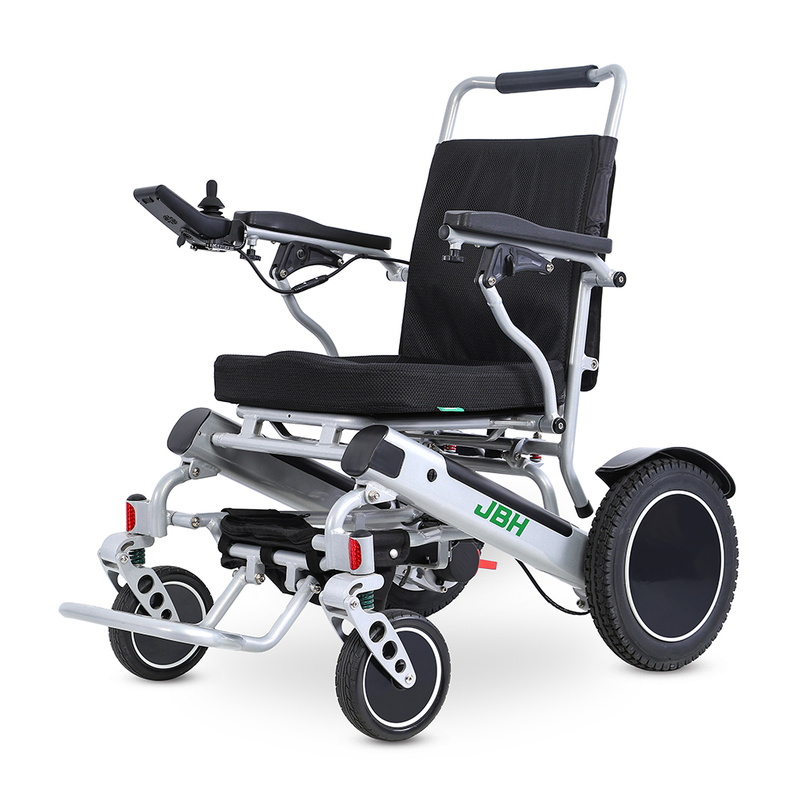

JBH Portable Electric Travel Alloy Wheelchair D11

Unfolded Size 39.4"*25.4"*37.8"

Fold Size   25.4"*14.2"*30.3"

Material Aluminum alloy

Driving Speed 0~6 km/h

Driving Range ≥20 km(12.4 miles)

Loading Capacity 120 kg (264.6 lb)

Net Weight  29 kg(63.9 lb)

Seat Width 440 mm (17.3")

Motor   250W × 2 pcs

Battery 24V 6AH × 2 pcs

Braking System Electromagnetic Brake
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • D11

  • JBH

D11 Electric Wheelchair


Description:

   JBH D11 is a lightweight electric wheelchair, it is automatic folded and has intelligent  electromagnetic brake. Hard PU tires with two high-power burshless motors to ensure you can travel over bumps and cracks, up hills, and on all terrains.


Features:

   1. One-touch battery ejects new design with anti-theft, quick and easy to move features

   2. USB port for battery charge through mobile device

   3. The seat and backrest cushions can be easily removed for cleaning

   4. Has an electromagnetic brake, and equips anti-shake wheels which promise a guarantee for a comfortable and easy maneuver

   5. Adjustable armrest lets you fully customize your sitting experience according to your comfort

   6. Hard PU tires with two high-power burshless motors to ensure you can travel over bumps and cracks, up hills, and on all terrains.



D11A Electric Wheelchair Details


Our Advantage:

   1. Have independent designer and factory. JBH Medical is a professional supplier of wheelchair and has our own factory and designer.

   2. High Quality Product. All our products have got the certifications and can meet different countries's requirements.

   3. Customization Service. Except the default colors, our products can be customized to any other colors according to your requirements.

   4. Perfect After-sales Service. We have agents in different countries, and provide technology support.

D26详情页-3_06



Fold Size
645*360*770 mm(25.4"*14.2"*30.3")
Unfold Size
1000*645*960mm(39.4"*25.4"*37.8")
Material
Aluminum Alloy
Driving Speed
0~6 km/h
Driving Range
≥20 km(12.4 miles)
Loading Capacity
120 kg (264.6 lb)
Net Weight
29 kg(63.9 lb)
Gross Weight
31.8 Kg(70.1 lb)
Armrest Spacing
470 mm(18.5")
Seat Width
440 mm (17.3")
Seat Depth
450 mm (17.7")
Motor
250W × 2 pcs brushless motor
Battery
24V 6AH lithium battery (1~4pcs)
Braking System
Electromagnetic Brake
Front Wheel
175 mm*50 mm*(6.9"*2") 2pcs PU solid wheels
Rear Wheel
325 mm*55 mm(12.8"*2.2")* 2pcs PU solid wheels
Safe Gradient
Turning Radius
800 mm (31.5“)
Charging Time
6 hours(2 batteries )
Default Color
Silver
Black

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:


   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.



   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
