JBH Lightweight Carbon Fiber Wheelchair DC07A

Unfolded Size 37.4"*23.2"*37.8"
Fold Size   13"*23.2"*31.1"
Material Carbon Fiber
Driving Speed 0~6 km/h
Driving Range ≥20 km(12.4 miles)
Loading Capacity 150 kg (330.7 lb)
Net Weight  21.5 Kg (47.4 lb)
Seat Width 500 mm (19.7")
Seat Depth 450 mm (17.7")
Motor   180W × 2 pcs brushless motor
Battery 24V 6AH × 2 pcs lithium battery
Braking System Electromagnetic Brake
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • DC07A

  • JBH

Carbon Fiber Electric Wheelchair DC07A

   JBH carbon fiber electric wheelchair DC07A is an ultra-lightweight wheelchair, the net weight is only 19kg. If you have high requirements for the wheelchair or need to stay in the wheelchair for a long time, then choosing a carbon fiber wheelchair will help you save a lot of energy and money.


    Carbon fiber frame makes the whole wheelchair much more durable than common wheelchairs. What's more, this kind of frame is more lightweight. A portable electric wheelchair with great performance, just pick it.

JBH Electric wheelchair

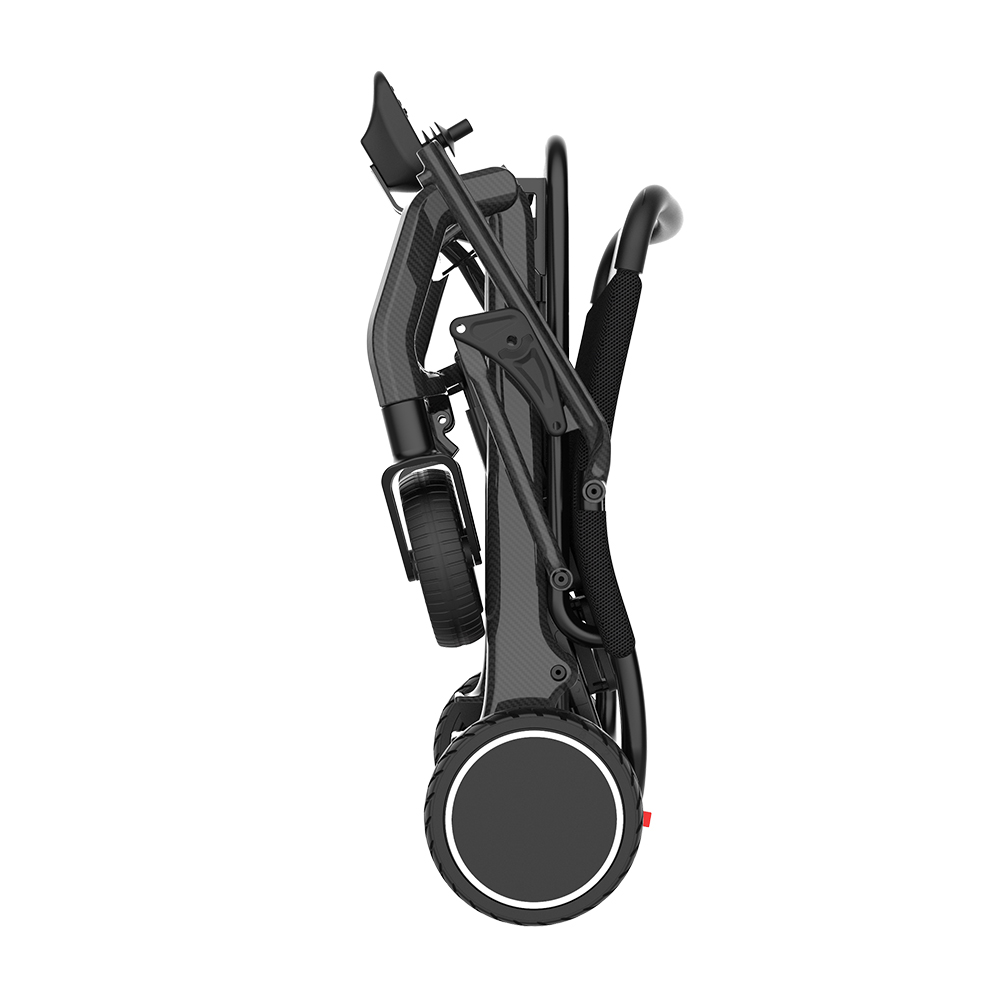

   DC07A is a folding electric wheelchair, it has a compact size and you can put it on the trunk or the corner easily. If you are searching for a portable wheelchair, then this one is suitable for you.


   Download our JBH APP, then you can control your wheelchair through the mobile phone.Wireless control allows individuals with limited mobility or dexterity to operate their wheelchairs independently. They can control the wheelchair's movements, such as forward, backward, turning, and stopping, without relying on someone else to push or steer the wheelchair.

Intelligent electric wheelchair


   For our electric wheelchair DC07, it has 3 travel modes.

   * Electric mode

   * Hand pushing

   * Folding and dragging

JBH Portable Electric Wheelchair


    DC07A equips the intelligent electromagnetic brake, and will immediate braking as soon as joystick released. This function can help you a lot when


   CloudECU intelligent centrifugal controller 3rd generation is JBH's own developed controller that enhances overcoming all-terrain ability.


JBH electric wheelchair factory

JBH wheelchair factory

Unfolded Size (L * W * H)
950 x 590x960 mm(37.4"*23.2"*37.8")
Fold Size (L * W * H)
310 x 590x790 mm(12.2"*23.2"*31.1")
Driving Speed
0~6 km/h
Driving Range
≥20 km(12.4 miles)
Loading Capacity
150 kg (330.7 lb)
Weight (with battery)
21.5 Kg (47.4 lb)
Gross Weight
24 Kg (52.9 lb)
Armrest Spacing
500 mm (19.7")
Seat Width
500 mm (19.7")
Seat Depth
450 mm (17.7")
180W × 2 pcs/brushless motor
24V 6AH * 2 pcs lithium battery
Braking System
Electromagnetic Brake
Front Wheel
7" * 2pcs PU solid wheels
Rear Wheel
8" * 2pcs PU solid wheels
Safe Gradient
Turning Radius
700 mm (27.6“)
Charging Time
6 hours
Default Color

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:

   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.


   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
