| Unfolded Size | 950*590*940mm |
| Folded Size | 590*275*760mm |
| Driving Speed | 0-6km |
| Max drive distance | 20km |
| Max Capacity | 140kg |
| Weight | 17kg |
| Safe Gradient | 0~8° |
| Motor | 24V 180W |
| Lithium Battery | 24V 6AH |
| Brake System | Electromagnetic Brake |
DC02
JBH
As a premier manufacturer and global supplier of advanced mobility solutions, we present this high-performance electric carbon fiber wheelchair. Engineered to restore independence and facilitate seamless travel, this mobility device combines aerospace-grade structural integrity with state-of-the-art motor technology to deliver an unparalleled user experience.
Ultra-lightweight carbon fiber construction for effortless handling
Aviation-approved dual lithium batteries for unrestricted global travel
Intelligent one-touch folding mechanism for compact storage
Experience the seamless blend of cutting-edge engineering and ergonomic design with this premium electric carbon fiber wheelchair. Crafted for individuals who demand both absolute reliability and refined elegance, the wheelchair features a sleek, matte-finished carbon fiber frame that feels cool, rigid, and exceptionally robust to the touch. When you engage the highly responsive joystick, the whisper-quiet brushless motors hum softly, propelling you forward with a smooth, fluid motion that completely eliminates the jarring starts and abrupt stops characteristic of conventional mobility aids. The breathable, contoured seating material provides immediate tactile comfort, ensuring that extended periods of use remain pleasant, supportive, and fatigue-free. By replacing heavy, cumbersome metal components with advanced composite materials, this mobility device dramatically reduces physical strain for both the user and their caregivers. Maneuvering through tight indoor corridors, navigating crowded spaces, or traversing uneven outdoor pathways becomes an effortless endeavor. The intuitive design empowers users to reclaim their freedom, offering a dignified, high-performance solution that transforms daily travel from a challenging task into a truly liberating experience.

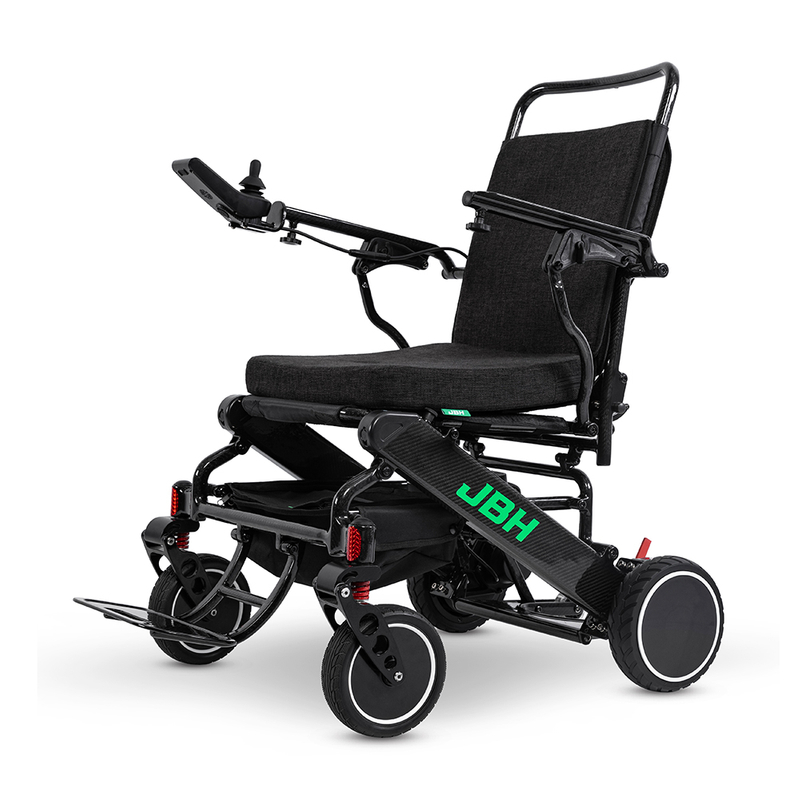

| Product Name | Electric Carbon Fiber Wheelchair DC02 |
|---|---|
| Frame Material | Carbon Fiber |
| Overall Size (L×W×H) | 37.4 x 24.1 x 37.4 inch (950 x 610 x 950 mm) |
| Fold Size (L×W×H) | 24.1 x 10.6 x 29.6 inch (610 x 270 x 750 mm) |
| Seat Width | 19.7 inch |
| Seat Depth | 16.6 inch |
| Seat Height | 19.3 inch |
| Net Weight (without battery) | 37.4 lbs (17 kg) |
| Gross Weight (with battery) | 44 lbs (20 kg) |
| Capacity | 330 lbs (150-160 kg) |
| Motor | 2 x 180W Brushless Motor |
| Battery | 2 x 24V 6AH Lithium Battery (Airlines approved) |
| Speed | 3.75 mph (6 km/h) |
| Driving Range | 15-25 Miles (20-25 km) |
| Front Wheel | 7 inch PU solid tire |
| Rear Wheel | 8 inch PU solid tire |
| Braking System | Electromagnetic braking system |
| Max Climbing Angle | 12° |
| Charging Time | 6 hours |
Our electric wheelchair is meticulously engineered to address the most pressing challenges faced by mobility aid users. By focusing on practical, life-enhancing benefits rather than merely technical specifications, we ensure that every single component serves a distinct purpose in improving daily functionality and comfort.
Effortless Transportation: The ultra-compact folding mechanism allows the chair to fit snugly into standard vehicle trunks, completely eliminating the need for specialized transport vans or heavy lifting equipment.
Uninterrupted Journeys: With a generous driving range of up to 25 miles, users can confidently plan full-day outings, shopping trips, or park visits without the constant anxiety of finding a charging station.
All-Weather Reliability: The naturally corrosion-resistant frame and durable solid tires withstand diverse environmental conditions, providing peace of mind whether navigating through damp coastal air or dry, dusty trails.
Adaptable Comfort: The intelligently designed seating area accommodates a wide range of body types, distributing weight evenly to prevent pressure sores during prolonged periods of sitting.
The foundation of this premium mobility device is its aerospace-grade carbon fiber frame, a material celebrated globally for its extraordinary strength-to-weight ratio. Unlike traditional steel or aluminum models, carbon fiber offers exceptional tensile strength, meaning it resists bending, stretching, and warping even under constant, rigorous stress.
Thermal Stability: Carbon fiber expands and contracts significantly less in extreme hot or cold temperatures, maintaining its precise structural integrity year-round.
Corrosion Resistance: Inherently impervious to rust and oxidation, the frame is the perfect solution for users living in humid climates or coastal environments.
Fatigue Resistance: The advanced composite material naturally absorbs micro-vibrations from the ground, preventing the metal fatigue that typically plagues standard wheelchairs over time.
UV Protection: Treated with specialized, high-grade resins, the sleek exterior resists fading and material degradation caused by prolonged exposure to sunlight.
Redefining travel convenience, this wheelchair directly addresses the heavy, bulky nature of traditional power chairs. Weighing merely 44 lbs with both batteries fully installed, it significantly reduces the physical toll of lifting, maneuvering, and storing the device for both the user and their assistants.
One-Touch Folding: Collapse or expand the entire chair in seconds with a single, fluid motion—absolutely no tools or complex disassembly required.
Ultra-Compact Footprint: Measuring just 10.6 inches wide when folded, it easily slides into narrow closets, tight indoor storage spaces, or the trunks of compact cars.
Standalone Posture: Once folded, the chair rests securely upright on its wheels, preventing it from tipping over, sustaining damage, or scuffing delicate flooring.
Caregiver Friendly: The drastically reduced overall weight means family members or attendants can confidently load the chair into a vehicle without risking severe back strain.
Long-distance travel should never be hindered by the limitations of mobility equipment. This chair integrates a sophisticated, high-efficiency dual-battery system that perfectly balances robust power output with strict international travel regulations.
Airline Approved: The dual 24V 6AH lithium batteries strictly comply with UN and FAA regulations, allowing for seamless boarding on commercial flights and cruise ships.
Flexible Charging Options: Charge the batteries conveniently while they remain mounted on the chair, or detach them effortlessly for independent indoor charging.
Extended Range: The intelligent dual-battery configuration delivers a reliable driving range of 15 to 25 miles on a single charge, supporting highly active lifestyles.
Quick-Release Mechanism: The batteries slide out smoothly from the side frames, drastically streamlining the security check process at busy airport terminals.
Navigate the world with absolute confidence, knowing your wheelchair is fully equipped to handle diverse and challenging environments. The dual 180W brushless DC motors deliver consistent, reliable torque without the loud, distracting whining noise associated with older motor technologies.
Puncture-Proof Tires: The 7-inch front and 8-inch rear PU solid tires feature a unique, deep tread design that grips varied surfaces securely and prevents flats.
Obstacle Clearance: Easily traverse gravel paths, grassy parks, and uneven pavements without losing vital traction or compromising lateral stability.
Shock Absorption: Integrated suspension elements naturally dampen the harsh impact of bumps and cracks, ensuring a smooth, gliding sensation for the rider.
Energy Efficiency: The low-friction brushless motor design maximizes battery life while requiring virtually zero internal maintenance over its extended lifespan.
Safety is the paramount concern when selecting a mobility device, and this model incorporates multiple redundant safety features to protect the user in all conceivable scenarios. The core of this comprehensive protection is the advanced electromagnetic braking system.
Instantaneous Halts: The exact moment the user releases the joystick, the electromagnetic brakes engage automatically, stopping the chair smoothly and precisely.
Anti-Rollback Technology: Whether ascending or descending a steep 12-degree incline, the chair remains firmly locked in place when stopped, completely eliminating the risk of rolling.
Anti-Tip Wheels: Rear-mounted safety wheels provide a crucial physical barrier against backward tipping during steep climbs or sudden, rapid accelerations.
Secure Seating: The meticulously balanced center of gravity ensures exceptional lateral stability when navigating tight corners or sloped sidewalks.
The interface between the user and the machine must be entirely intuitive, highly responsive, and easily adaptable. This wheelchair features a state-of-the-art 360-degree joystick controller that instantly translates minimal hand movements into precise directional control.
Pinpoint Accuracy: Maneuver through crowded shopping centers or narrow residential doorways with absolute millimeter precision.
Ambidextrous Design: The smart controller can be easily mounted on either the left or right armrest, perfectly accommodating the user's dominant hand or specific mobility limitations.
Clear Interface: The control panel features highly visible, tactile buttons for power, speed adjustment, and a warning horn, along with a bright, clear battery life indicator.
Adjustable Sensitivity: The intelligent joystick responds smoothly to varying degrees of pressure, allowing for both cautious creeping speeds indoors and brisk pacing outdoors.
For commercial sourcing, institutional procurement, and global distribution, verifiable quality and strict regulatory compliance are absolutely non-negotiable. This wheelchair is manufactured under the most rigorous quality control protocols to ensure immediate global market readiness.
ISO Standards: Produced in a state-of-the-art ISO9001 and ISO13485 certified facility, guaranteeing consistent manufacturing excellence and operational reliability.
Regulatory Approvals: Holds essential CE and FDA certifications, confirming its official status as a safe, highly effective medical device for international markets.
Rigorous Testing: Each individual unit undergoes extensive quality assurance testing, including heavy load-bearing trials, motor endurance tests, and strict battery safety checks.
Reliable Supply Chain: As a dedicated global supplier, we provide consistent product availability, comprehensive warranty support, and readily accessible replacement parts.
Selecting the right manufacturing partner is just as critical as choosing the right product. We pride ourselves on delivering exceptional, long-term value through a unique combination of innovative engineering, stringent quality control, and unparalleled professional support.
Direct Manufacturer Advantage: By sourcing directly from our advanced production facilities, you benefit from highly competitive pricing without ever compromising on premium materials or build quality.
Dedicated R&D Team: Our experienced engineers continuously refine our mobility solutions based on real-world user feedback, ensuring our products remain at the absolute forefront of the industry.
Comprehensive Warranty: We firmly stand behind our craftsmanship with robust, clear warranty coverage, fully protecting your investment and providing total peace of mind.
Responsive Support: Our knowledgeable, dedicated customer service team is always ready to assist with complex technical inquiries, maintenance guidance, and prompt parts replacement.
We understand that procuring a premium mobility device involves careful consideration and thorough research. Below, we have compiled detailed answers to the most common professional inquiries regarding our carbon fiber wheelchair to help you make a fully informed decision.
Carbon fiber is significantly lighter than aviation-grade aluminum while offering vastly superior tensile strength. It also possesses natural vibration-dampening properties, resulting in a much smoother ride, and unlike metal, it will never corrode, rust, or degrade from moisture exposure over time.
Yes, the wheelchair is designed with a simple, accessible freewheel lever located directly on the motors. By manually disengaging the electromagnetic brakes, a caregiver or attendant can easily push the chair just like a traditional manual wheelchair.
Absolutely. The dual 24V 6AH lithium batteries are fully UN and FAA certified for safe air travel. They feature a quick-release design, allowing them to be easily detached and carried into the aircraft cabin in strict accordance with standard global airline regulations.
Brushless motors are virtually maintenance-free because they entirely lack the internal carbon brushes that naturally wear out and create friction in traditional motors. Simply keeping the exterior motor housing clean and free of heavy debris is sufficient to ensure years of optimal performance.
Equipped with highly durable, puncture-proof PU solid tires and a robust, integrated suspension system, the chair easily navigates grass, gravel, and uneven pavement. Furthermore, the rear anti-tip wheels ensure absolute stability and safety on inclines up to 12 degrees.
