JBH Ultralight Carbon Fiber Motorized Wheelchair DC06

Unfolded Size 950 × 600 × 950 mm (37.4"×23.6"×37.4")
Folded Size   600 × 340 × 800 mm (23.6"×13.4"×31.5")
Driving Speed 0~6 km/h
Max drive distance 25 km (15.5 miles)
Max Capacity 120 kgs (265 lb)
Net Weight 23 kgs (50.7 lb)
Safe Gradient 0~8°
Motor   24V 250W
Lithium Battery 24V 6AH
Brake System Electromagnetic Brake
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • DC06

  • JBH

    JBH DC06 is a new designed carbon fiber wheelchair electric wheelchair. The frame adopts one-piece molding design, and the max capacity can up to 180kg. It is designed to provide people with disabilities or mobility impairments with greater independence and freedom of movement.

Carbon Fiber Wheelchair

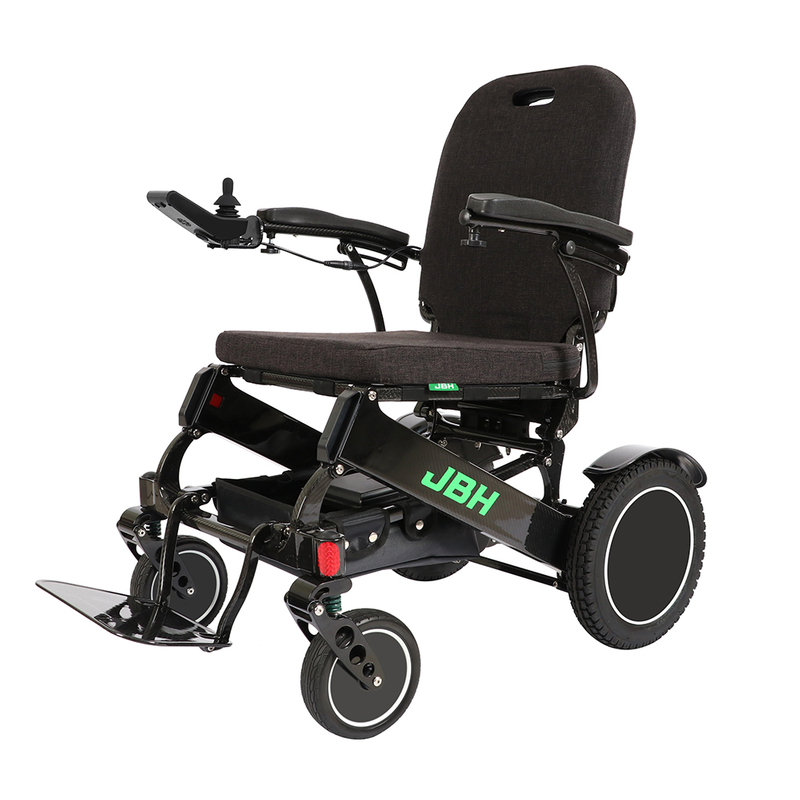

   JBH Carbon Fiber Wheelchair DC06

      Featherweight carbon fiber electric wheelchair

      The electric wheelchair DC06 is made of carbon fiber. This is a kind of material that is famous for its light weight. The net weight of our DC06 is only 23kg (50.7 lb)), and an adult can easily lift it up.

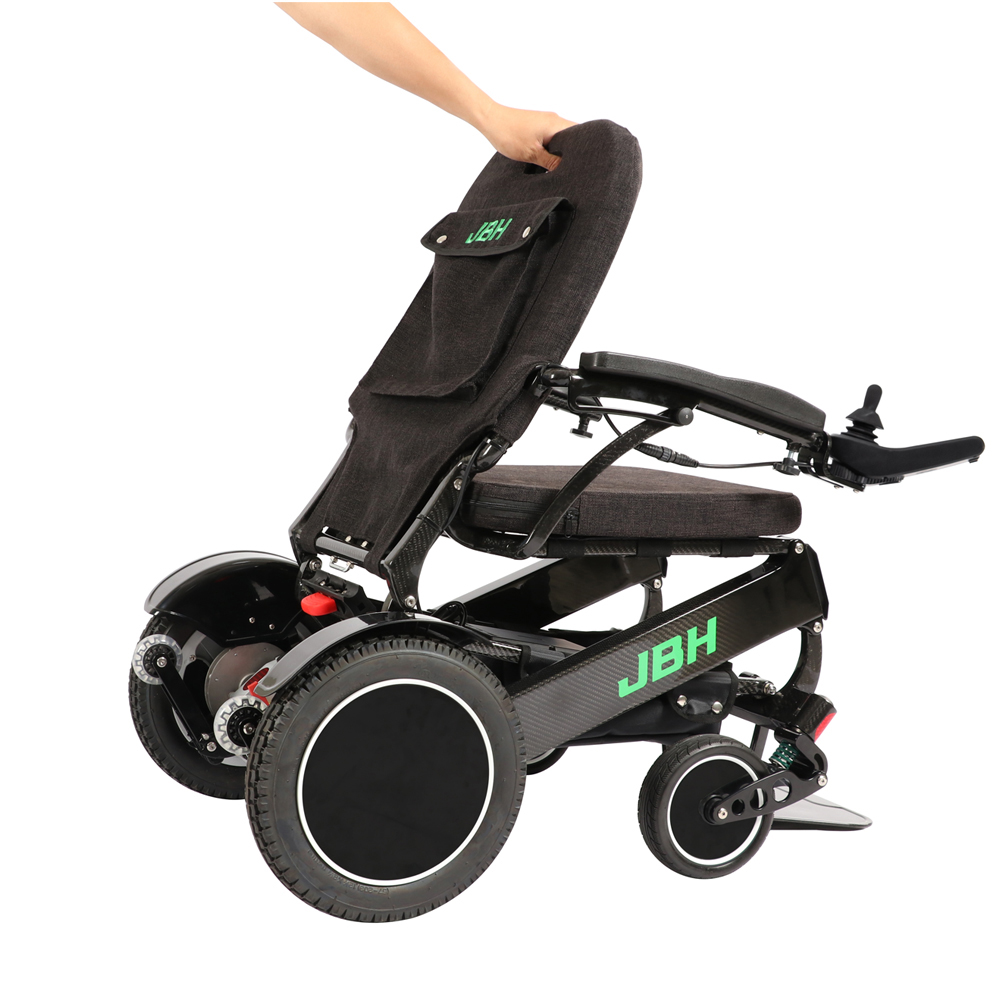

      Folding/unfolding into a compact size

      JBH mainly provides foldable electric wheelchairs. Our carbon fiber electric wheelchair DC06 is easy to fold & unfold. When you don’t need it, just fold it up and put it in the corner, very convenient. And the folded electric wheelchair is small as a mini suitcase, you can put it into the trunk easily.

JBH Folding electric wheelchair

      Much durable than normal electric wheelchairs

      Carbon fiber is known for its strength and durability, which makes it an ideal material for a wheelchair frame. It can withstand the wear and tear of daily use and is resistant to corrosion.

      Easy for users to navigate through tight spaces

      For electric wheelchair DC06, the user can move it forward, backward, sideways, and even rotate in place, making it easier to navigate through tight or crowded spaces.

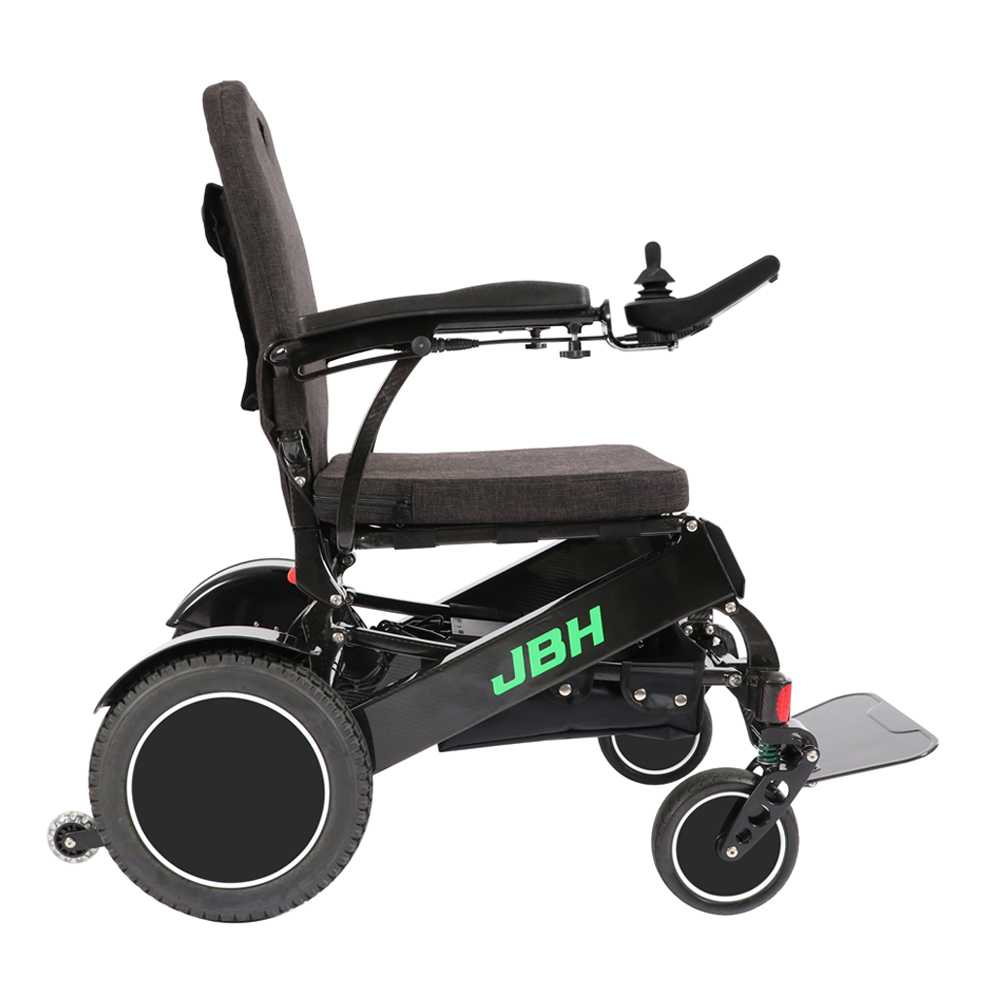

JBH Carbon Fiber Electric Wheelchair DC06


Carbon fiber
Unfold Size (L * W * H) (mm/inch)
950 × 600 × 950 mm (37.4"×23.6"×37.4")
Fold Size (L * W * H) (mm/inch)
600 × 340 × 800 mm (23.6"×13.4"×31.5")
Loading Capacity
120 kgs (265 lb)
250W × 2 pcs brushless motors
24V 6AH × 2 pcs lithium battery
Max Speed
6 km/h (3.7mph)
Driving Range
25 km (15.5 miles)
Front Wheels
175×50 mm (6.9"×2") PU solid wheels
Rear Wheels
325×55 mm (12.8"×2.2") PU solid wheels
Climbing Slope
Max 8°
Charging Time
6~8 hours
Armrest Spacing
490 mm (19.3")
Seat Width
450 mm (17.7")
Seat Depth
440 mm (17.3")
Seat Height
Front 525 mm (20.7") / Back 510 mm (20.1")
Turning Radius
800 mm (31.5")
Net Weight (Without Battery)
23 kgs (50.7 lb)
Net Weight (Finished Product)
26 kgs (57.3 lb)
Drive Model
Rear Drive
Braking System
Intelligent Electromagnetic Brake
