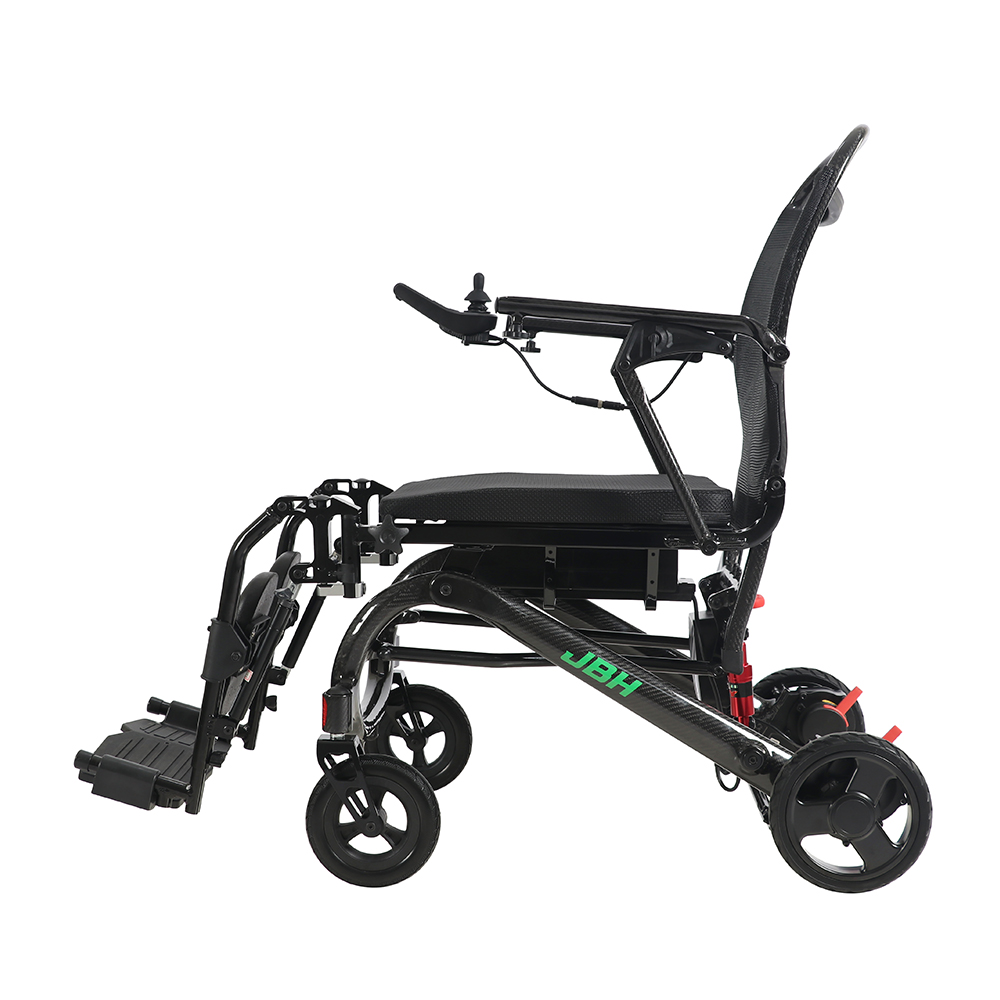

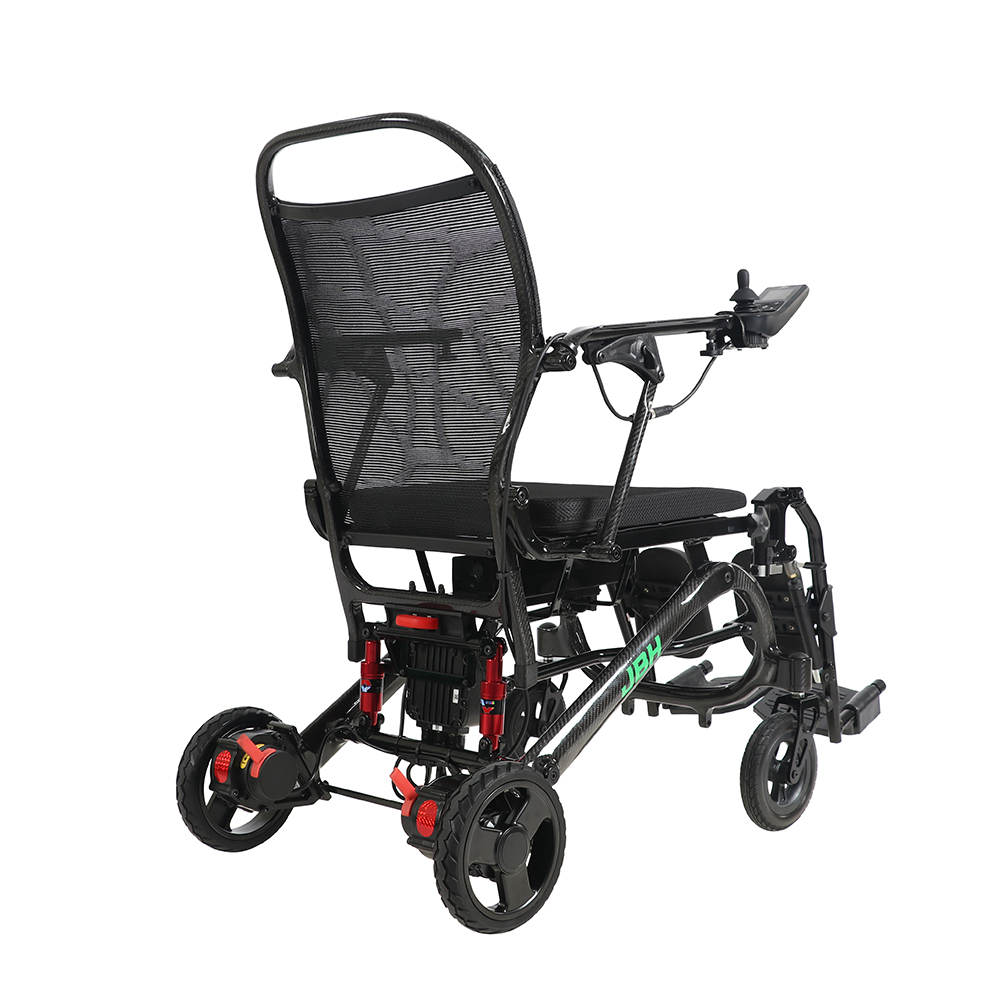

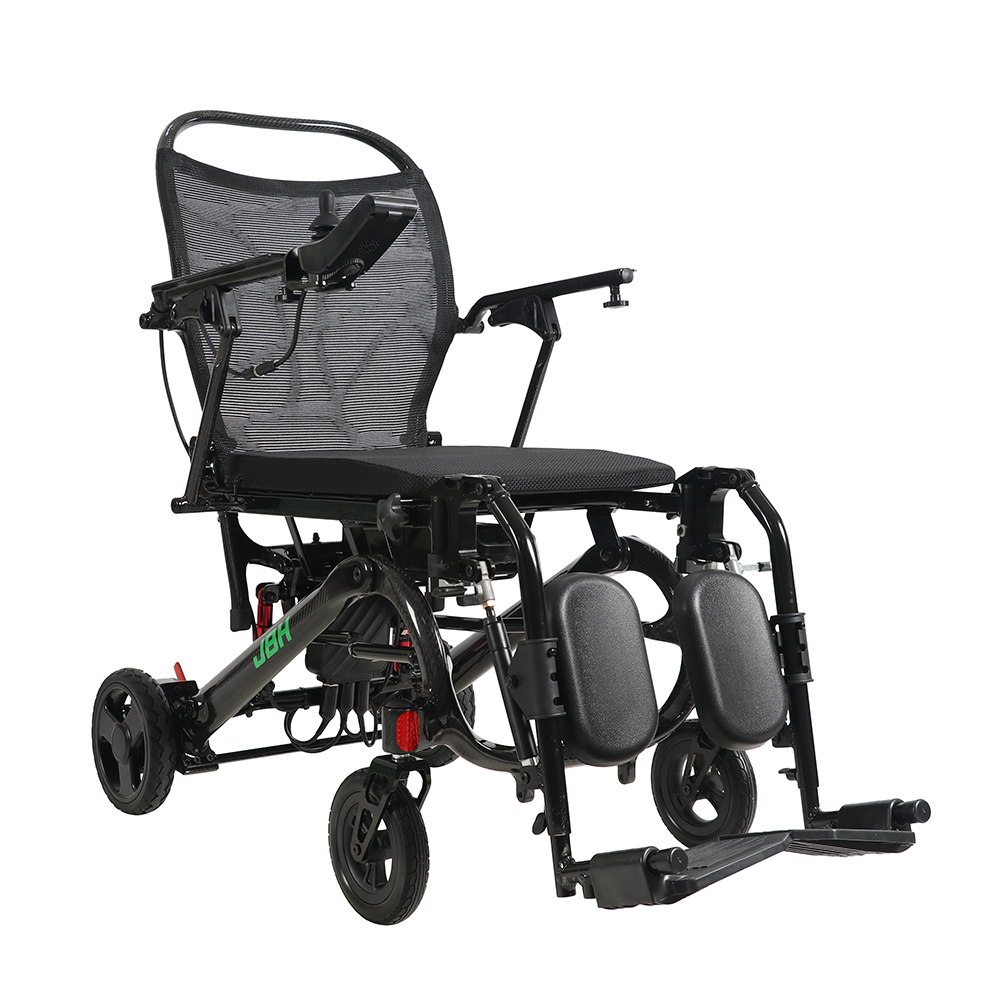

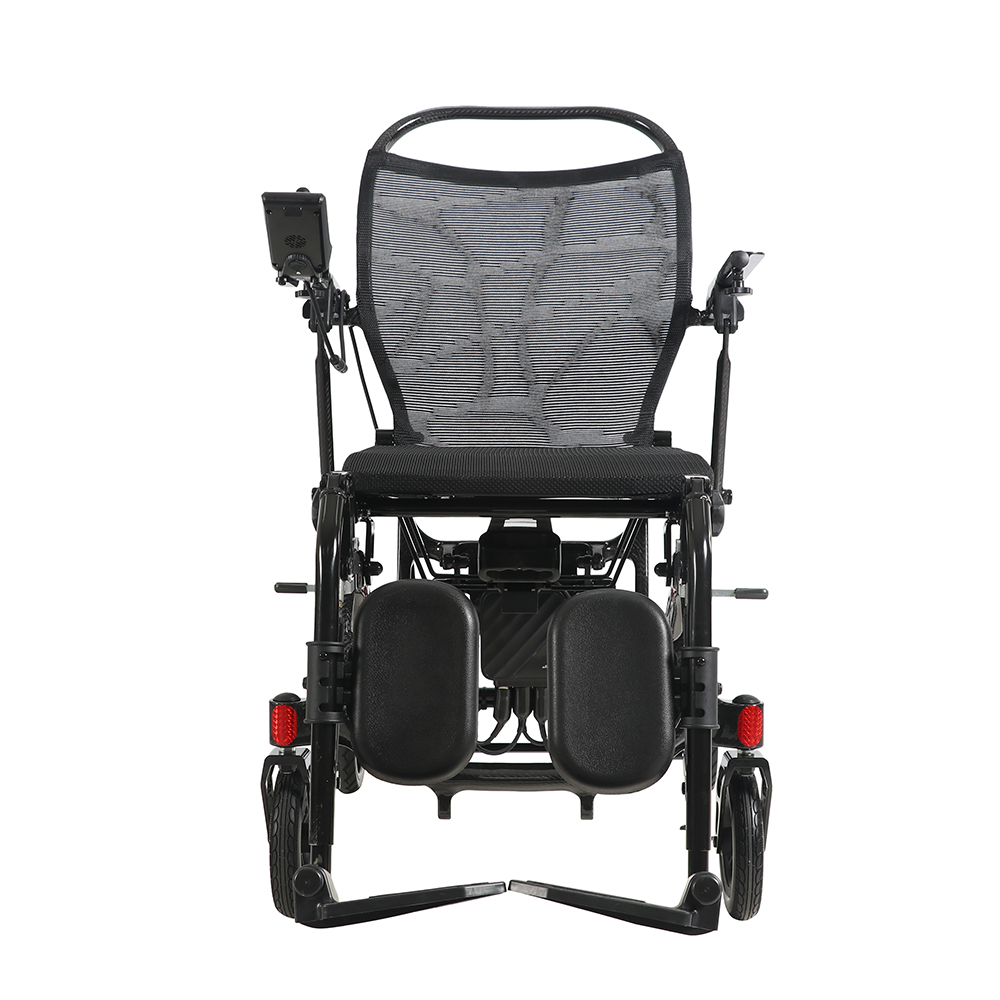

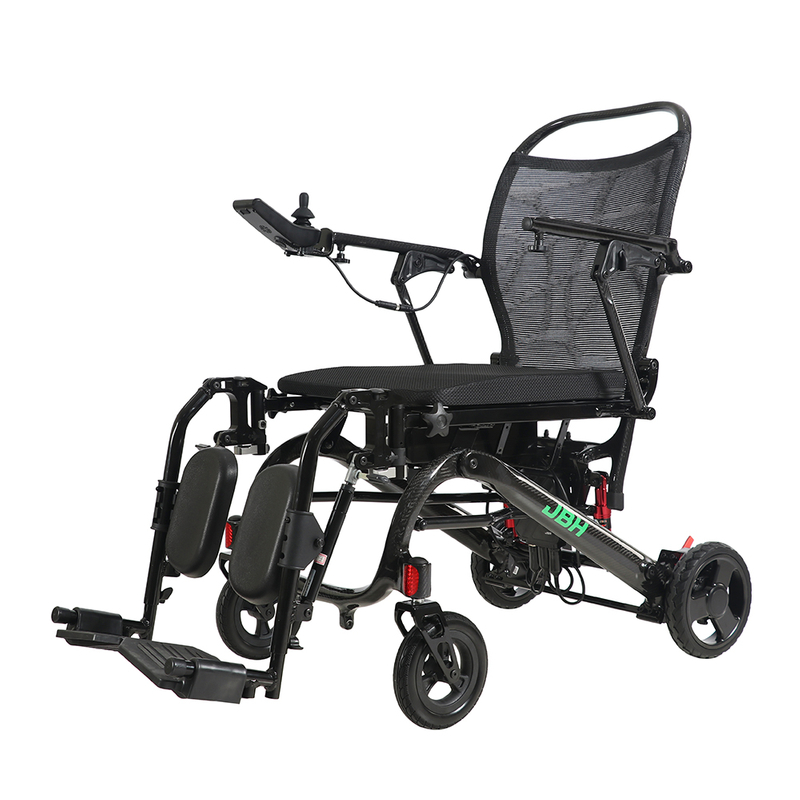

JBH Adjustable Folding Carbon Fiber Wheelchair DC10S

Unfolded Size 42.3"*22"*38.6"
Fold Size   13.4"*22"*29.5"
Material Carbon Fiber
Driving Speed 0~6 km/h
Driving Range ≥20 km(12.4 miles)
Loading Capacity 150 kg (330.7 lb)
Net Weight  17Kg (37.5 lb)
Seat Width 500 mm (19.7")
Seat Depth 450 mm (17.7")
Motor   180W × 2 pcs brushless motor
Battery 24V 12AH × 1 pc lithium battery
Braking System Electromagnetic Brake
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • DC10S

  • JBH

Carbon Fiber Wheelchair DC10L

Experience a new level of mobility with the JBH Medical DC10S Carbon Fiber Wheelchair.  Impeccably designed and crafted, this exceptional wheelchair combines state-of-the-art technology, superior functionality, and the lightweight advantages of carbon fiber construction.  Discover the extraordinary features that set the DC10S apart and redefine your mobility experience.

Ultra-Light Carbon Fiber Material

The DC10S sets the standard for lightweight design, utilizing carbon fiber material that results in a net weight of just 17kg.  Enjoy effortless maneuverability without compromising on strength and durability.  This lightweight wheelchair enhances your mobility, making every journey more comfortable and convenient.

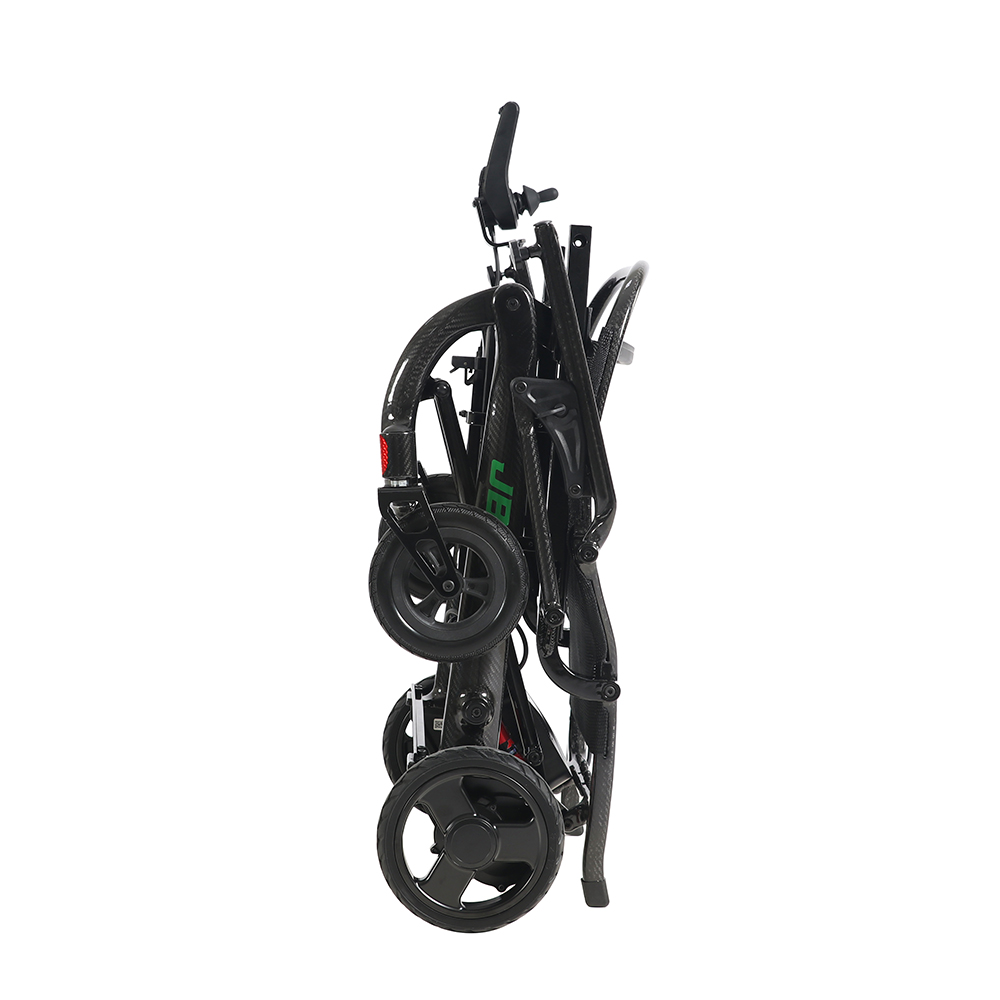

Easy Folding and Compact Design

Embrace the convenience of the DC10S's easy folding mechanism and compact design.  This wheelchair effortlessly folds into a compact size, allowing for seamless storage and convenient transportation.  Whether you're traveling or navigating through tight spaces, the DC10S adapts to your needs with ease.

Electromagnetic Braking System

Safety is paramount, which is why the DC10S is equipped with a reliable electromagnetic braking system.  With the simple flick of a switch, the wheelchair comes to a smooth and secure stop, providing you with peace of mind during your travels.

Detachable 12ah Lithium Battery

Take your wheelchair anywhere you go, including on flights, with the DC10S's detachable 12ah lithium battery.  This feature allows for easy transportation and compliance with airline regulations.

Convenient Charging Options

Enjoy the flexibility of charging your wheelchair using the DC10S's convenient charging options.  You have the choice to charge the wheelchair directly or remove the battery for separate charging.  This ensures that you can easily keep your wheelchair powered up and ready for your next adventure.

Manual and Electric Modes

The DC10S offers both manual and electric modes, providing you with versatility and freedom.  Whether you prefer the independence of manual propulsion or the convenience of electric power, this wheelchair grants you the flexibility to switch between modes based on your preferences and needs.

Adjustable Footrest

Customize your comfort with the DC10S's adjustable footrest.  You can easily adjust the height and length of the footrest to suit your specific requirements.  This feature ensures optimal support and comfort, allowing you to enjoy extended periods of use without discomfort.

Rear Suspension with Shock Absorbers

Experience a smooth and comfortable ride with the DC10S's additional rear suspension equipped with shock absorbers.  This feature enhances the wheelchair's ability to absorb bumps and vibrations, providing you with a more comfortable and stable experience, even on uneven terrain.


 wheelchairs suppliers


Unfolded Size (L * W * H)
1075 x560x980mm(42.3"*22"*38.6")
Fold Size (L * W * H)
340 x560x750 mm(13.4"*22"*29.5")
Driving Speed
0~6 km/h
Driving Range
≥20 km(12.4 miles)
Loading Capacity
150 kg (330.7 lb)
Net Weight
17Kg (37.5 lb)
Armrest Spacing
500 mm (19.7")
Seat Width
500 mm (19.7")
Seat Depth
450 mm (17.7")
180W × 2 pcs/brushless motor
24V 12AH * 1 pc lithium battery
Braking System
Electromagnetic Brake
Front Wheel
7" * 2pcs PU solid wheels
Rear Wheel
8" * 2pcs PU solid wheels
Safe Gradient
Charging Time
6 hours
Default Color

   The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:

   ※ Chair frame: 3 years

   ※ Motors: 1 year

   ※ Controller and CPU system: 1 year

   ※ Battery: 6 months

   ※ Wear parts: 3 months

    Includes tires, seat and backrest, armrests, and support straps.


   This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
