| Unfolded Size | 1050X550X870 mm |
| Folded Size | 550X480X790 mm |
| Driving Speed | 0~6 km/h |
| Max drive distance | 20 km |
| Max Capacity | 120 kgs |
| Weight | 26.5 kgs (Without Battery) |
| Safe Gradient | 0~12° |
| Motor | 24V 270W |
| Lithium Battery | 24V 6AH |
| Brake System | Electromagnetic Brake |
FDB01
JBH

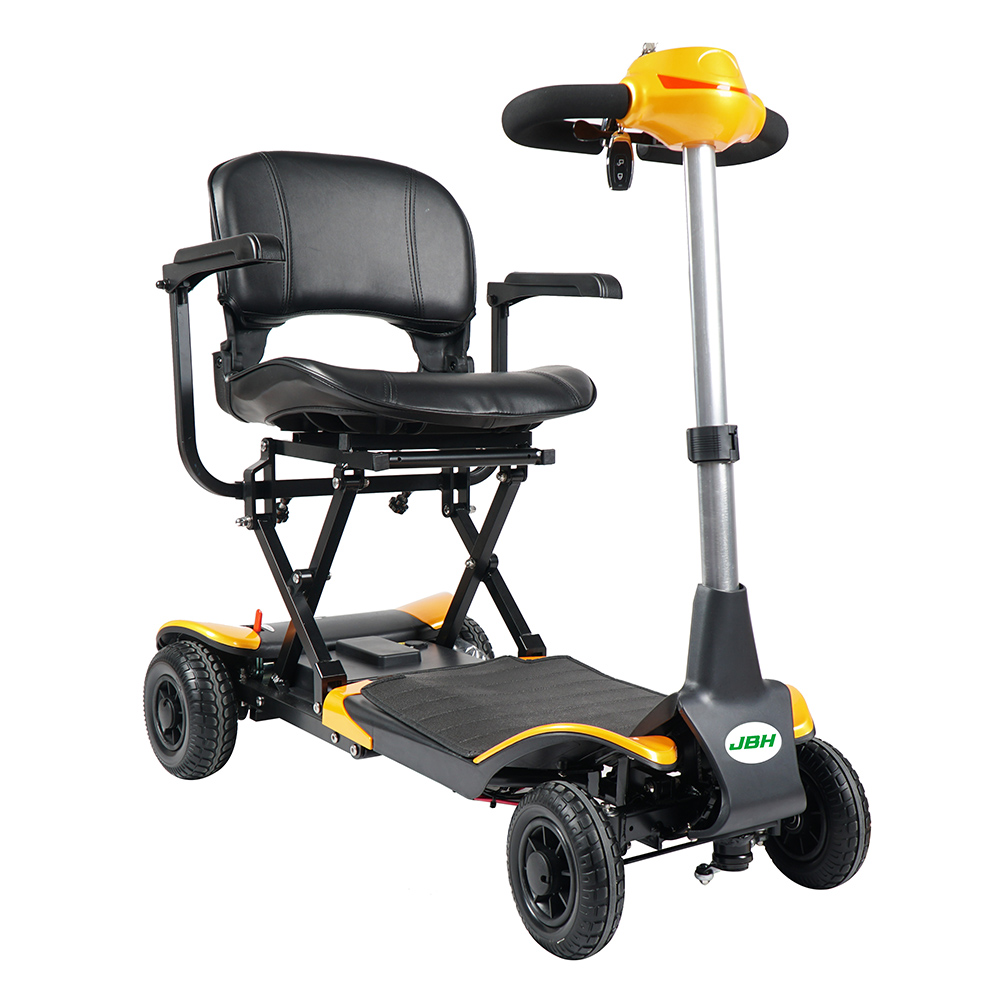

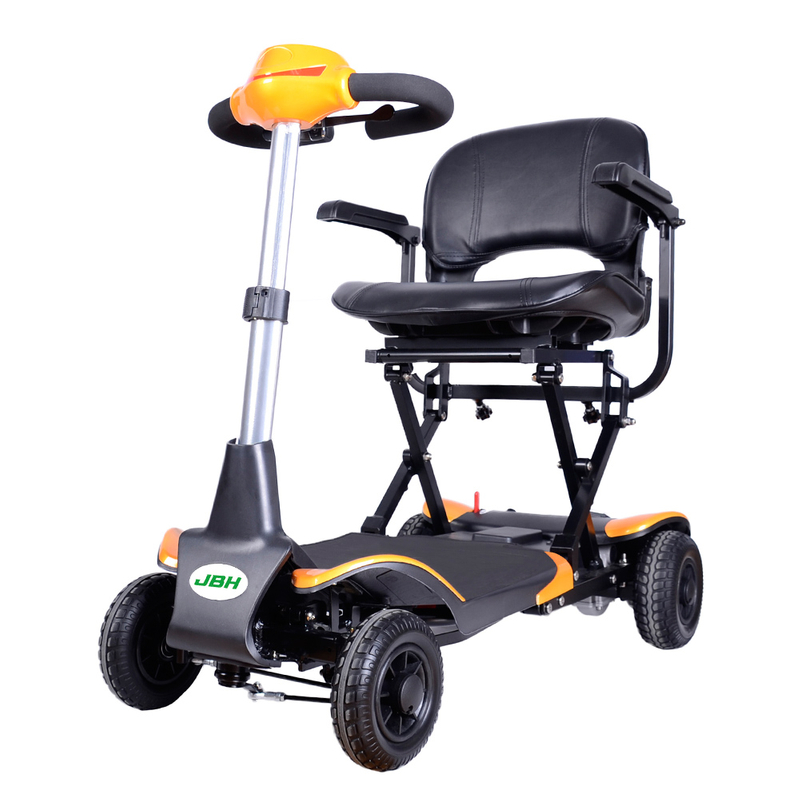

JBH FDB01 is the classic mobility scooter for elderly, it can be folded automatically or by remote control. It is also airplane approved, you can take it for a long distance travel.
Part | Quantity |
Aluminum Alloy frame | 1 |
Front wheels | 2 |
Rear wheels | 2 |
Anti-tip wheels | 2 |
Seat | 1 |
Adjustable steering column | 1 |
Tiller console | 1 |
Electric motor | 1 |
Electromagnetic brake | 1 |
Rechargeable Lithium-Ion Batteries | 2 |
Off-board charger | 1 |
1. Maximum range of 20KM.

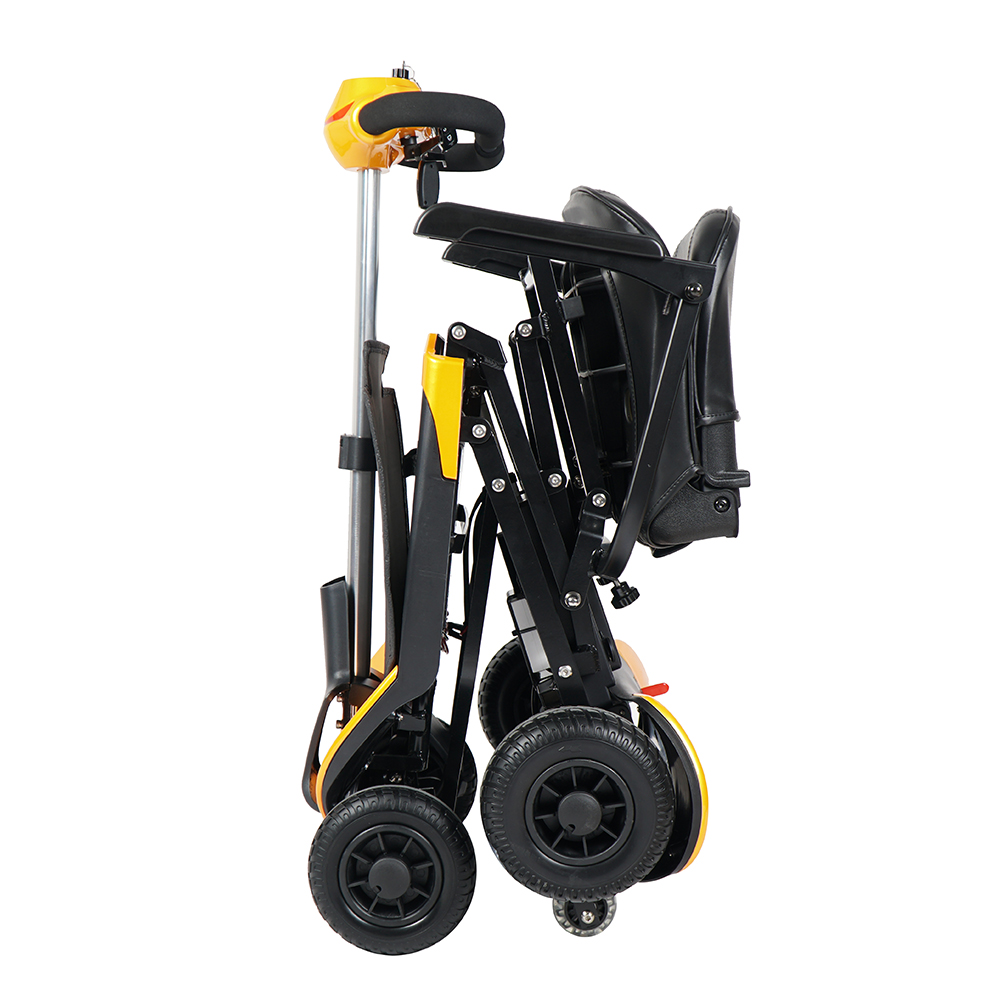

2. One button folding expansion
3. Lightweight scooter weighing only 29kg (with battery).
4. Unique remote control folding design, easy to carry and store
5. Electromagnetic braking system to ensure safety
6. Aluminum alloy frame, light weight and high strength.
7. Equipped with high-quality removable lithium battery.
8. Easy-to-adjust tiller places the scooter's controls in the ideal position.
9. 180W double strong motor, imported PG controller,
10. Two kinds of folding options,
11.Can be on the plane, can be put in the trunk
1. Adjustable control panel height
2. Adjustable armrests space
3. Detachable dot touch
4. Airline approved battery
5. Charge scooter directly or battery off-board
6. Mechanical control & remote control
JBH FDB01 is the classic mobility scooter for elderly, it can be folded automatically or by remote control. It is also airplane approved, you can take it for a long distance travel.
