| Unfolded Size (L * W * H) | 960 × 495 × 950 mm (37.8"×19.5"×37.4") |
| Fold Size (L * W * H) | 435 × 495 × 710 mm (17.1"×19.5"×28") |
| Loading Capacity | 120 kgs(265 lb) |
| Battery | 24V 6AH × 2 pcs lithium battery |
| Max Speed | 6 km/h (3.7mph) |
| Driving Range | 20 km（12.4 miles） |
| Seat Width | 400 mm (15.7"） |
| Net Weight (Without Battery and Seat) | 24.3 kgs (53.6 lb) |
| Motor | 180W×1 pc brush motor |
| Front Wheels | 163×50 mm (6.4"×2") PU solid wheels |
| Rear Wheels | 190×54 mm (7.5"×2.1") PU solid wheels |
| Braking System | Electromagnetic Brake |
FNS01
JBH

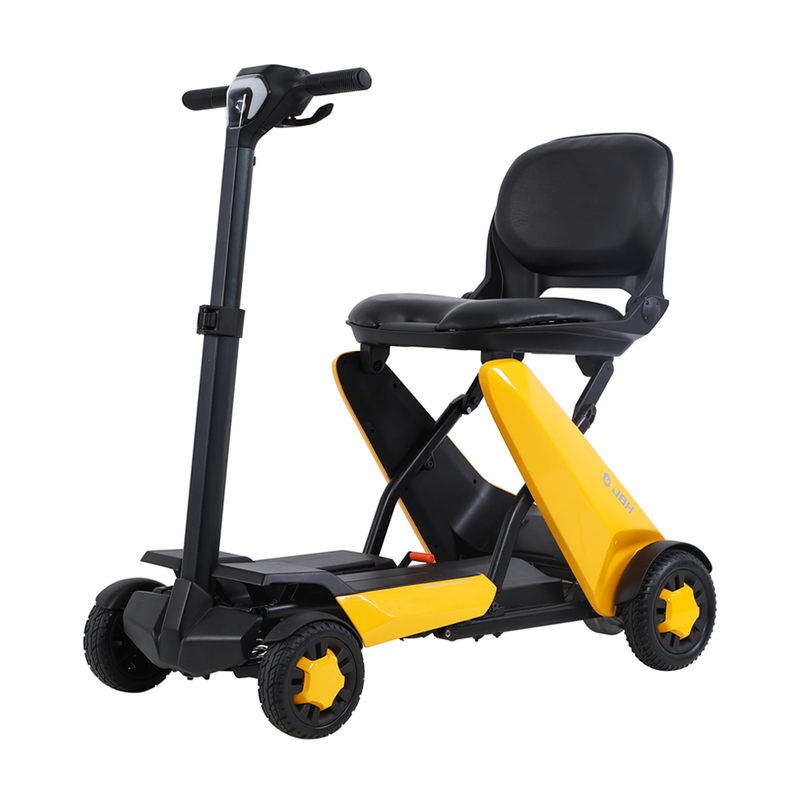

As a premier manufacturer and supplier of advanced mobility solutions, we introduce this modern 4-wheel mobility scooter. Engineered for exceptional performance and sleek aesthetics, it serves as a high-value addition to any professional distribution portfolio. The intelligent design ensures immediate user familiarity while maximizing storage efficiency.
Lightweight 28kg aluminum alloy construction
One-touch remote automatic folding and unfolding
Advanced FOC motor combined with CloudECU
Automobile-grade coating available in four distinct colors
The modern 4-wheel mobility scooter FNS01 redefines the standard for personal transportation devices, seamlessly combining striking futuristic aesthetics with heavy-duty reliability. From the moment you run your hands along the smooth, automobile-grade coated chassis, the superior craftsmanship and attention to detail are immediately evident. The silent, powerful hum of the advanced FOC motor effortlessly propels users forward, offering a remarkably stable and fluid ride over diverse terrains. Designed to alleviate the physical strain often associated with long journeys, the breathable, highly elastic seat cushion and expansive legroom ensure unparalleled comfort. By offering this intelligent, award-winning device, you empower your clientele with a product that not only restores independence but does so with unmatched style and security. The highly intuitive interface guarantees that even first-time users will feel confident and in control instantly, drastically reducing the learning curve and enhancing overall satisfaction. This is far more than a standard mobility aid; it is a premium lifestyle upgrade that elevates your catalog, meets the rigorous demands of today's discerning market, and drives significant value for your procurement strategy.
Delivering exceptional value to your product lineup requires equipment that stands out in both functionality and visual appeal. The FNS01 mobility scooter is engineered with a suite of premium features designed to minimize maintenance requests, maximize user satisfaction, and provide a compelling competitive edge in the high-end mobility market. Every component has been meticulously selected to ensure long-lasting performance and effortless operation.
Intelligent Digital Dashboard: Provides a crystal-clear, full display of the scooter's status, ensuring users are always informed about battery life and speed.
Multiple Wireless Control Systems: Accessible via a dedicated smartphone application or an intelligent key, offering unprecedented convenience.
OTA Wireless Upgrades: Automatic software enhancements ensure the device's operating system is always current without requiring manual intervention.
Electromagnetic Braking System: Delivers immediate, smooth, and reliable stopping power, crucial for user safety in crowded or sloped environments.
PU Solid Tires: Highly durable, puncture-proof tires that provide excellent traction and eliminate the need for regular inflation.
Space optimization is a critical factor for both inventory management and the end-user's daily life. The FNS01 masterfully addresses this with its ultra-compact footprint and innovative folding technology. Weighing in at a highly manageable 28kg (total weight), this scooter is designed for life on the move. The integration of a one-touch remote fold and unfold mechanism transforms what is traditionally a cumbersome process into a seamless, effortless action.
One-Touch Remote Operation: Allows users to automatically collapse or expand the scooter with a single press, requiring zero physical exertion.
Compact Folded Dimensions: Measuring just 435 x 495 x 710 mm when folded, it easily fits into the trunk of a standard automobile, tight storage compartments, or small corners.
Logistical Efficiency: For distributors, the compact export packing size significantly reduces shipping volumes and warehousing costs, optimizing your supply chain overhead.
Pull-and-Go Convenience: Once folded, the scooter can be effortlessly rolled like a piece of luggage, making travel and transportation trouble-free.
When providing mobility solutions, user safety is paramount to maintaining brand reputation and minimizing after-sales liabilities. The FNS01 is fortified with a medical-grade safety matrix that proactively protects the rider across various environments. By integrating high-tech safety protocols, this scooter delivers peace of mind, ensuring compliance with strict market standards and reducing the likelihood of user-error incidents.
Sloping Controlling System: Automatically detects inclines and adjusts power output and braking force to prevent rollback and ensure stable ascents up to 8 degrees.
Self-Safety Inspection System: Conducts a rapid diagnostic check upon startup, alerting the user to any potential electronic or mechanical anomalies before the journey begins.
Lithium Battery Protection: Advanced safeguards prevent overcharging, deep discharging, and overheating, extending the lifespan of the dual 24V 6AH batteries.
Safety Lighting System: Features a head lighting range that adjusts with the handlebar angle and a continuous tail light, providing maximum visibility in low-light conditions.
A mobility scooter must perform reliably regardless of the path ahead. The FNS01 boasts a superb electrical system designed to deliver heavy-duty performance without compromising its lightweight nature. The synergy between the motor and the intelligent controller results in a dynamic driving experience that easily overcomes complex terrains, reducing the frequency of customer complaints regarding power deficiencies.
FOC Motor Technology: Field-Oriented Control ensures smooth, whisper-quiet acceleration and highly efficient power consumption.
CloudECU Controller: This advanced brain processes terrain data in real-time, optimizing torque output for seamless slope climbing and obstacle navigation.
Rear Drive Configuration: Pushes the scooter from the back, providing superior traction and stability, especially when navigating inclines or uneven outdoor surfaces.
Extended Driving Range: Capable of traveling up to 25 km (15.5 miles) on a single charge, satisfying the demands of active users who require reliable, all-day performance.
Long-term comfort is a primary driver of user retention and positive product recommendations. The FNS01 has been thoughtfully engineered with human-centric design principles to eliminate the fatigue associated with prolonged sitting. Every touchpoint, from the handlebars to the footrest, has been optimized to accommodate diverse body types, ensuring a premium, customized feel for every rider.
Angle Adjustable Handlebar: Allows users to customize the steering column to their exact reach, preventing shoulder and wrist strain during operation.
Premium Seat Cushion: Crafted from high-elasticity materials, the seat features a waterproof exterior and an internal air circulation function to release pressure and heat.
Extra Width Seat Back: Provides robust lumbar support, promoting proper posture and reducing backaches over extended journeys.
Spacious Footstep Area: Offers sufficient stretching space for the legs, preventing cramping and accommodating users of varying heights comfortably.
In a market often saturated with clinical and utilitarian designs, the FNS01 stands out as a masterpiece of modern engineering. Celebrating its victory at the prestigious iF DESIGN AWARD 2024, this scooter draws its visual inspiration from the sleek, aerodynamic lines of super racing autos. This striking appearance allows distributors to position the product within a premium pricing tier, appealing to style-conscious consumers who refuse to compromise on aesthetics.
iF DESIGN AWARD Winner: Internationally recognized for its outstanding design, providing a powerful marketing asset to elevate your brand's prestige.
Supercar Inspiration: The futuristic, aerodynamic silhouette breaks away from traditional mobility aids, offering a product that users are proud to drive.
Automobile Equal Level Coating: Utilizing advanced painting technology, the chassis boasts a brilliant, scratch-resistant finish that maintains its showroom shine for years.
High Premium Potential: The combination of award-winning aesthetics and high-end finishes justifies a higher retail margin, significantly boosting your profitability.
Durability and weight capacity are critical metrics for evaluating the long-term viability of a mobility product. The FNS01 achieves an extraordinary balance by utilizing advanced metallurgical techniques. It delivers heavy-duty performance and a substantial loading capacity while maintaining a remarkably light overall weight. This structural integrity minimizes warranty claims and ensures the device withstands the rigors of daily, intensive use.
Aviation-Grade Aluminum Alloy: The primary frame material offers exceptional tensile strength while remaining impervious to rust and corrosion.
Optimal Weight-to-Capacity Ratio: Despite a net weight of only 24.3 kgs (without battery and seat), the robust frame securely supports a loading capacity of up to 120 kgs (265 lbs).
Rigid Chassis Construction: Engineered to absorb shocks and vibrations, protecting the internal electronics and providing a stable platform for the rider.
Low Maintenance Requirements: The durable materials and solid PU tires drastically reduce the need for ongoing mechanical servicing, lowering the total cost of ownership.
Partnering with the right manufacturer is essential for securing a stable, high-quality supply chain. We operate state-of-the-art production facilities dedicated to the rigorous manufacturing of advanced mobility devices. Our commitment to excellence is reflected in every stage of our process, from raw material procurement to final assembly and global logistics. By choosing us, you align your business with a supplier capable of meeting high-volume demands without ever compromising on precision or reliability.
Stringent Quality Control: Every scooter undergoes comprehensive safety and performance testing, simulating extreme conditions to guarantee flawless operation upon delivery.
Advanced Manufacturing Capabilities: Our expansive factory infrastructure utilizes automated assembly lines to ensure consistent product quality and rapid fulfillment of large-scale orders.
Global Certification Compliance: Our products are backed by extensive international certifications and patents, ensuring smooth customs clearance and market entry in diverse regions.
Optimized Logistics: We utilize robust, export-grade packaging and efficient warehousing strategies to ensure your inventory arrives in pristine condition, ready for immediate distribution.
To assist your procurement team and technical staff in understanding the full capabilities of the FNS01, we have compiled answers to the most critical operational and structural inquiries.
What is the maximum weight capacity and structural integrity of the frame?
The FNS01 utilizes a high-strength aluminum alloy frame that safely supports a maximum loading capacity of 120 kgs (265 lbs), ensuring heavy-duty performance while maintaining a lightweight profile.
How does the one-touch folding mechanism operate in high-frequency usage?
The remote folding system is driven by a highly durable, precision-engineered actuator designed for thousands of cycles. It operates smoothly via the intelligent key or app, requiring no manual force and resisting wear over time.
What specific battery protection protocols are integrated into the CloudECU?
The CloudECU features a comprehensive Lithium battery protection system that actively monitors voltage and temperature. It prevents overcharging, mitigates deep discharge scenarios, and protects against short circuits, significantly prolonging battery life.
Can the automobile-grade coating withstand extreme weather conditions?
Yes, the automobile equal level coating technology provides a robust, UV-resistant, and waterproof seal over the chassis. This prevents fading, resists scratches, and protects the underlying alloy from environmental corrosion.
What are the logistical advantages of the scooter's packaged dimensions?
With a compact folded size of 435 x 495 x 710 mm and a gross export packing weight of 31.5 kgs, the FNS01 maximizes pallet density. This allows distributors to optimize shipping container space, significantly reducing per-unit freight costs.
