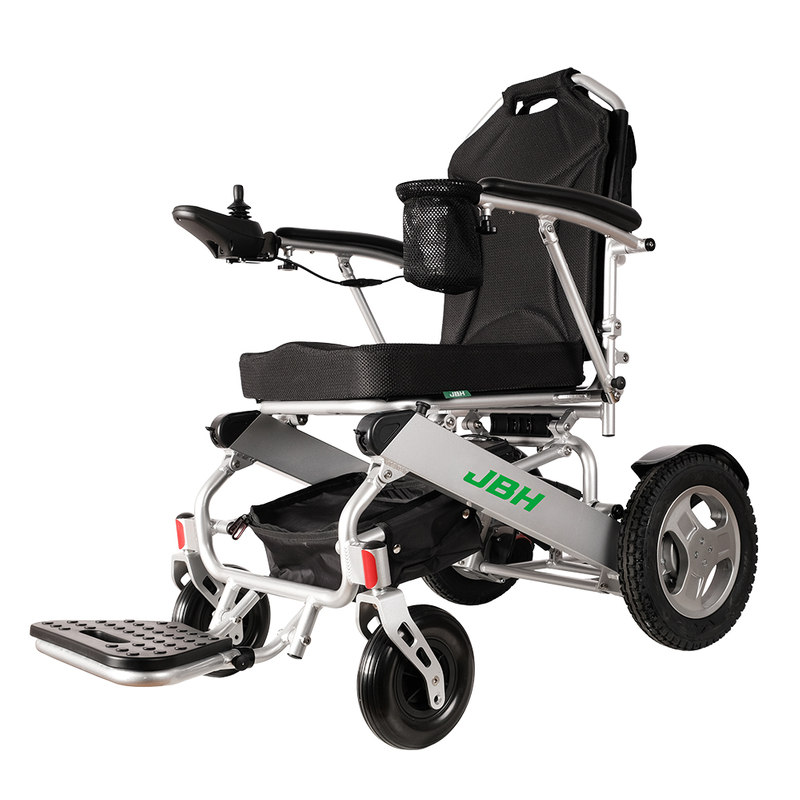

JBH Indoor Adjustable Lightweight Electric Wheelchair

Unfolded Size                                                                        1100X600X990 mm
——————————————————————————————————————————
Folded Size                                                                              600X330X820 mm
——————————————————————————————————————————
Driving Speed                                                                                          0~6 km/h
——————————————————————————————————————————
Max drive distance                                                                                        20 km
——————————————————————————————————————————
Max Capacity                                                                                             160 kgs
——————————————————————————————————————————
Weight                                                                            27 kgs (Without Battery)
——————————————————————————————————————————
Safe Gradient                                                                                                  0~8°
——————————————————————————————————————————
Motor                                                                                                      24V 250W
——————————————————————————————————————————
Lithium Battery                                                                                         24V 6AH
——————————————————————————————————————————
Brake System                                                                    Electromagnetic Brake
——————————————————————————————————————————
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • D26

  • JBH

D26详情页-2_01


Product Description

D26 wheelchair is the perfect combination of JBH classic best-selling products D09 and D05. The original advantages and characteristics of D09 and D05 have been continued in her body, and it is more comfortable and more considerate for users, with additional accessories and functions.


Product Characteristics

1. Quick-released batteries attached both sides of the chair.

2. Passengers weighing up to 160kg.

3. Intelligent joystick which can be mounted on left or right side of Armrest.

4. Ergonomic seat design.

5. Small and cute and easy to carry.

6. Batteries can be used on planes.

D26详情页-2_02D26详情页-2_03D26详情页-2_04D26详情页-3_06



Data Sheet

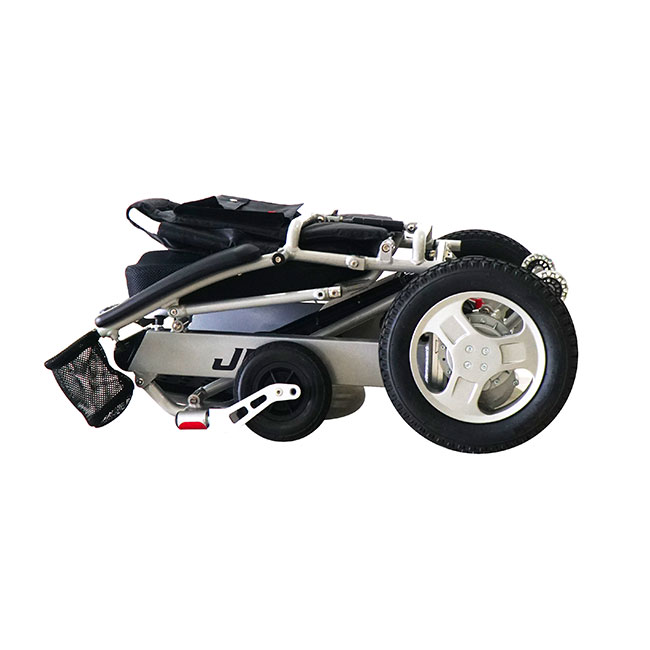

Fold Size

600*330*820 mm

Overall Size

1100*600*990 mm

Material

 Aluminium alloy

Max. Weight Capacity

160 kg

Speed

0-6 km/h

Operating Renge

20 km

Max. Inclination

Turning Radius

80 cm

Motor

24V 250W brushless

Batteries

24V 6AH *2

Ternary lithium Battery

Battery Charger

24V 2A

Wheel Material

PU Solid

Front Wheel Size

8”* 2”

Rear Wheel Size

12.5”* 2.25

Seat Width

430

Seat Depth

430

Net Weight without Battery

27 kgs

Net Weight with two Batteries

30 kgs

Gross Weight

35 kgs
