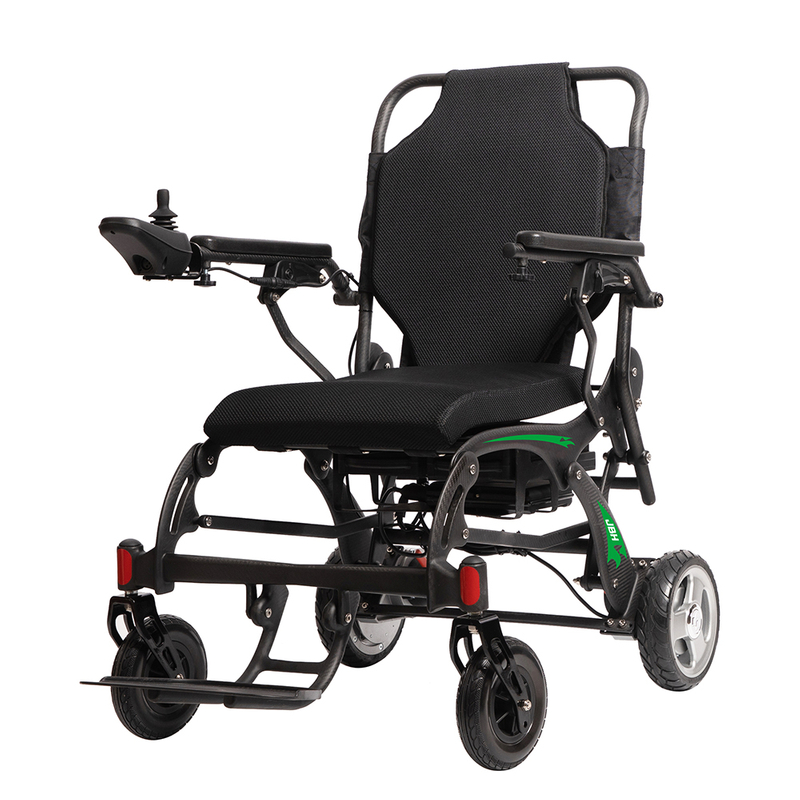

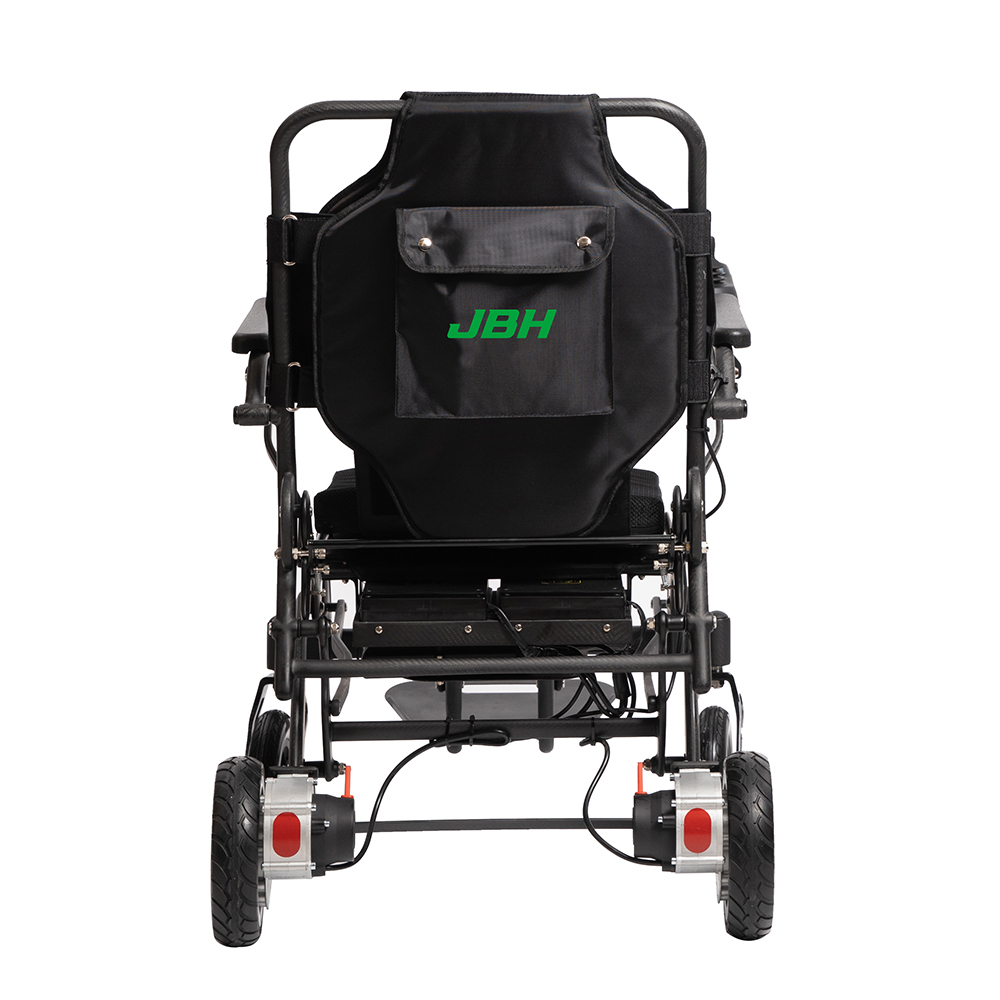

Fold Up Multiple Sclerosis Off Road Electric Wheelchair

Unfolded Size                                                                    875X665X920 mm
————————————————————————————————————————
Folded Size                                                                        665X415X715 mm
————————————————————————————————————————
Driving Speed                                                                                   0~6 km/h
————————————————————————————————————————
Max drive distance                                                                                 25 km
————————————————————————————————————————
Max Capacity                                                                                        160 kgs
————————————————————————————————————————
Weight                                                                      18 kgs (Without Battery)
————————————————————————————————————————
Safe Gradient                                                                                             0~8°
————————————————————————————————————————
Motor                                                                                                24V 180W
————————————————————————————————————————
Lithium Battery                                                                                  24V 6AH
————————————————————————————————————————
Brake System                                                             Electromagnetic Brake
————————————————————————————————————————
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • DC01

  • JBH

DC01详情页2_01


Product Description

The DC01 carbon-fiber electric wheelchair is lightweight and can be folded up to board an airplane, made of carbon fiber,With the characteristics of high temperature resistance, friction resistance, conductivity, heat conduction and corrosion resistance. Carbon fiber is less than 60% of the weight of aluminum alloy. Mainly used in the manufacture of aerospace and other high-tech equipment.


Product Characteristics

1. Carbon fibre frame, the weight of wheelchair is 18kg lighter

2. New appearance design, more fashionable

3. One-handed operation of new folding lock structure to achieve one-step folding

4. New folding structure design,lighter and thinner after folding

5. Light composite motor

DC01详情页3_02DC01详情页3_03DC01详情页3_04DC01详情页3_05DC01详情页3_06


Data Sheet



Fold Size

665x415x715mm

Overall Size

875x665x920mm

Material

Carbon Fiber

Max. Weight Capacity

160 kg

Speed

0-6 km/h

Operating Renge

20-25 km

Max. Inclination

Turning Radius

90 cm

Motor

24V 180W Brushless

Controller

Brushless

24V

Batteries

24V 6AH *2

Ternary lithium Battery

Battery Charger

24V 2A

Wheel Material

PU

Front Wheel Size

7”

Rear Wheel Size

8”

Accessories

1. Head cushion

2. Cargiver control intallation kits

3. Cell phone holder

4. Storage bag

5. Leg brace

6. Atachable rear seat

7. Travel bag

8. Flashlight

9. Cup holder
