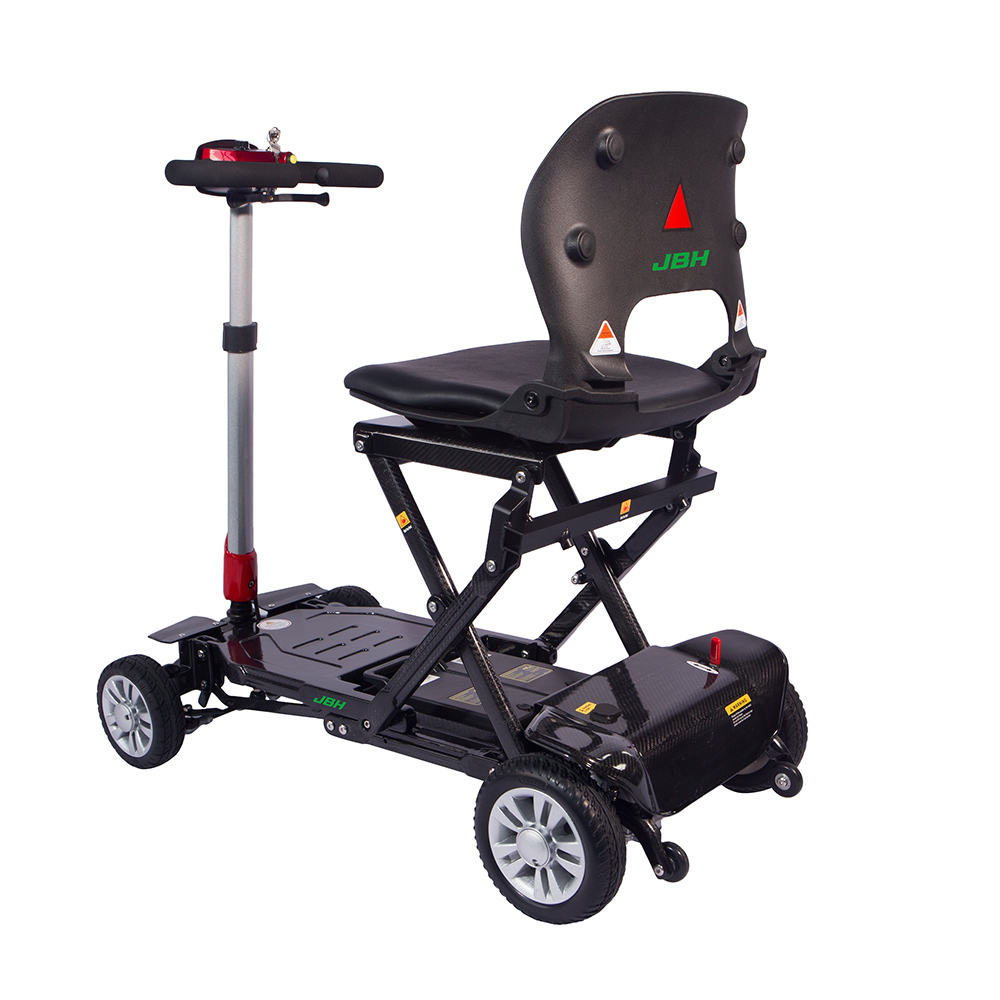

JBH Indoor Foldable Lightweight Carbon Fiber Mobility Scooter

Unfolded Size                                                          890X480X880 mm
—————————————————————————————————————
Folded Size                                                              400X480X680 mm
—————————————————————————————————————
Driving Speed                                                                          0~6 km/h
—————————————————————————————————————
Max drive distance                                                                       20 km
—————————————————————————————————————
Max Capacity                                                                             140 kgs
—————————————————————————————————————
Weight                                                            19 kgs (Without Battery)
—————————————————————————————————————
Safe Gradient                                                                                 0~12°
—————————————————————————————————————
Motor                                                                                      24V 180W
—————————————————————————————————————
Lithium Battery                                                                         24V 6AH
—————————————————————————————————————
Brake System                                                   Electromagnetic Brake
—————————————————————————————————————


Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • FBC01

  • JBH

FBC01详情页-2_01


Product Description

FBC01 is the carbon fiber upgraded version of JBH substitute scooter FDB01. The Scooter has compact and foldable design, new appearance design, more fashionable,wholely new designed telescopic folding structure, it is folding size is thinner.


Product Characteristics

1. Super light high strength carbon fiber frame

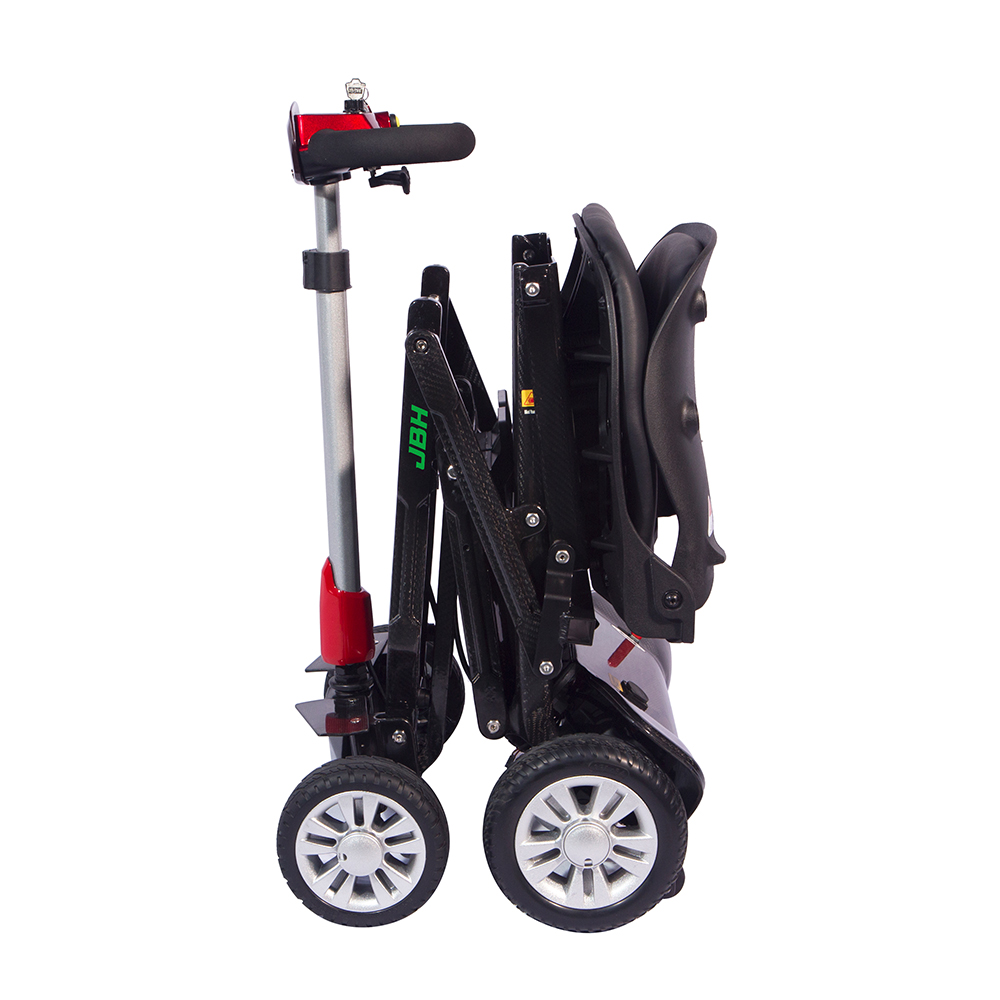

2. Fast folding & small size

3. Airline approved battery

4. Detachable dot touch lithium battery

5. Manual and electric mode switching

FBC01详情页-2_02FBC01详情页-3_03FBC01详情页-2_04FBC01详情页-3_05




Data Sheet

Fold Size

400*480*680 mm

Overall Size

890*480*880 mm

Material

Carbon fiber

Max. Weight Capacity

140 kgs

Speed

0-6 km/h

Operating Renge

20-25 kms

Max. Inclination

12°

Turning Radius

120cm

Motor

24V 180W Brush

Batteries

24V 6AH *2

Ternary lithium Battery

Battery Charger

24V 2A

Wheel Material

PU Solid Wheel

Front Wheel Size

6.5”

Rear Wheel Size

7.5”
