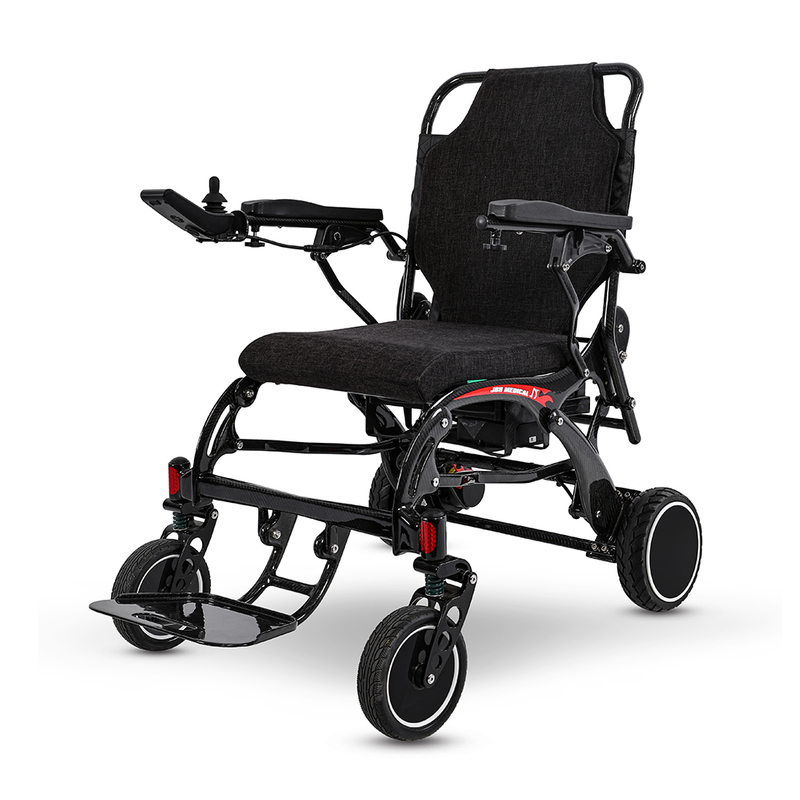

JBH Lightweight Carbon Fiber Wheelchair DC01

Unfolded Size  875X665X920 mm

Folded Size    665X415X715 mm

Driving Speed    0~6 km/h

Max drive distance 20km

Max Capacity   160 kgs

Weight 20.1 kgs (Without Battery)

Safe Gradient 0~8°

Motor   24V 180W

Lithium Battery 24V 6AH

Brake System Electromagnetic Brake
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • DC01

  • JBH

DC01 Electric Wheelchair


Product Description

   The electric wheelchair DC01 hast lightweight carbon fiber frame. Simple one-touch folding system is very convenient for disabled person. And it is very light and suitable for transport and storage.


Features

1. Compact lightweight Carbon Fibre Frame

2. Fully foldable for easy transport and storage

3. Simple one-touch folding system

4. 12Ah flight safe batteries

5. Two Storage Bags


Portable WheelchairEasy Carry WheelchairJBH DC01 Wheelchair


Accessories

1. Head cushion

2. Cargiver control intallation kits

3.  Cell phone holder

4.  Storage bag

5. Leg brace

6. Atachable rear  seat

7. Travel bag

8.  Flashlight

9. Cup holder



Advantage of carbon fiber wheelchair
   1. Lightweight. Carbon fiber is a low density material with a very high strength to weight ratio

   2. High tensile strength. One of the strongest of all commercial reinforcing fibers when it comes to tension, carbon fiber is very difficult to stretch or bend

   3. Low thermal expansion. Carbon fiber will expand or contract much less in hot or cold conditions than materials like steel and aluminum

   4. Exceptional durability. Carbon fiber has superior fatigue properties compared to metal, meaning components made of carbon fiber won’t wear out as quickly under the stress of constant use

   5. Corrosion-resistance. When made with the appropriate resins, carbon fiber is one of the most corrosion-resistant materials available

   6. Radiolucence. Carbon fiber is transparent to radiation and invisible in x-rays, making it valuable for usage in medical equipment and facilities

   7. Ultra-violet resistant. Carbon fiber can be UV resistant with use of the proper resins

Parameters


Certificates


Fold Size
665*415*715mm
Unfold Size
875*665*920mm
Material
Carbon Fiber
Max Weight Capacity
160kg
Speed
0-6 km/h
Operating Range
20km
Max. Inclination
Turning Radius
90cm
Motor
24v 180w
Batteries
24V 6AH *2
Ternary lithium Battery
Battery Charger
24V 2A
Front Wheel Size
7"
Rear Wheel Size
8"
Default Color
Black
Seat Width
430mm
